X897M

Tesla Part Number
1058577-02-A
Connector
ROSENBERGER 59Z118-C00-C
Color
BU

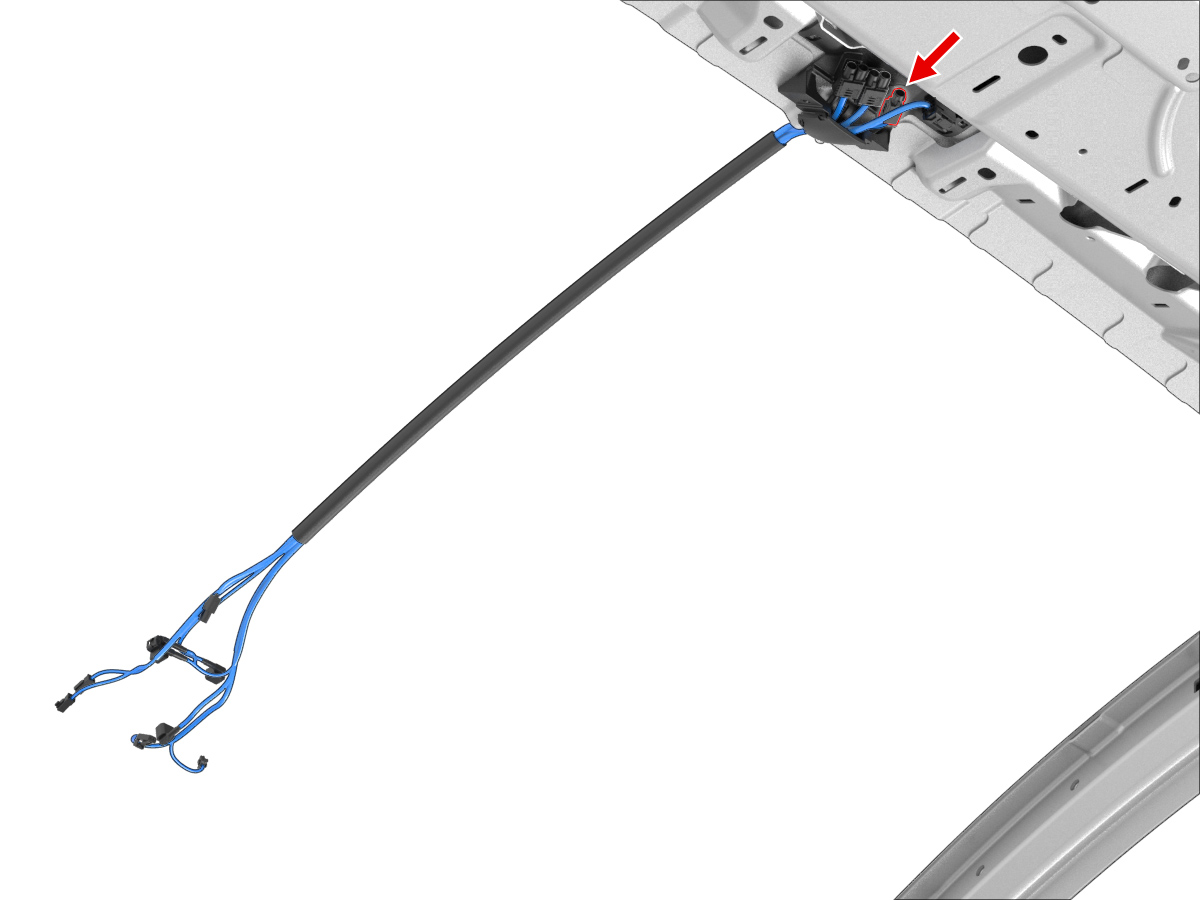

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59S10O-102A4COAXMBKRG316X8341
