X900F

Tesla Part Number

1061984-00-A

Connector

MOLEX 33472-0606

Color

BK

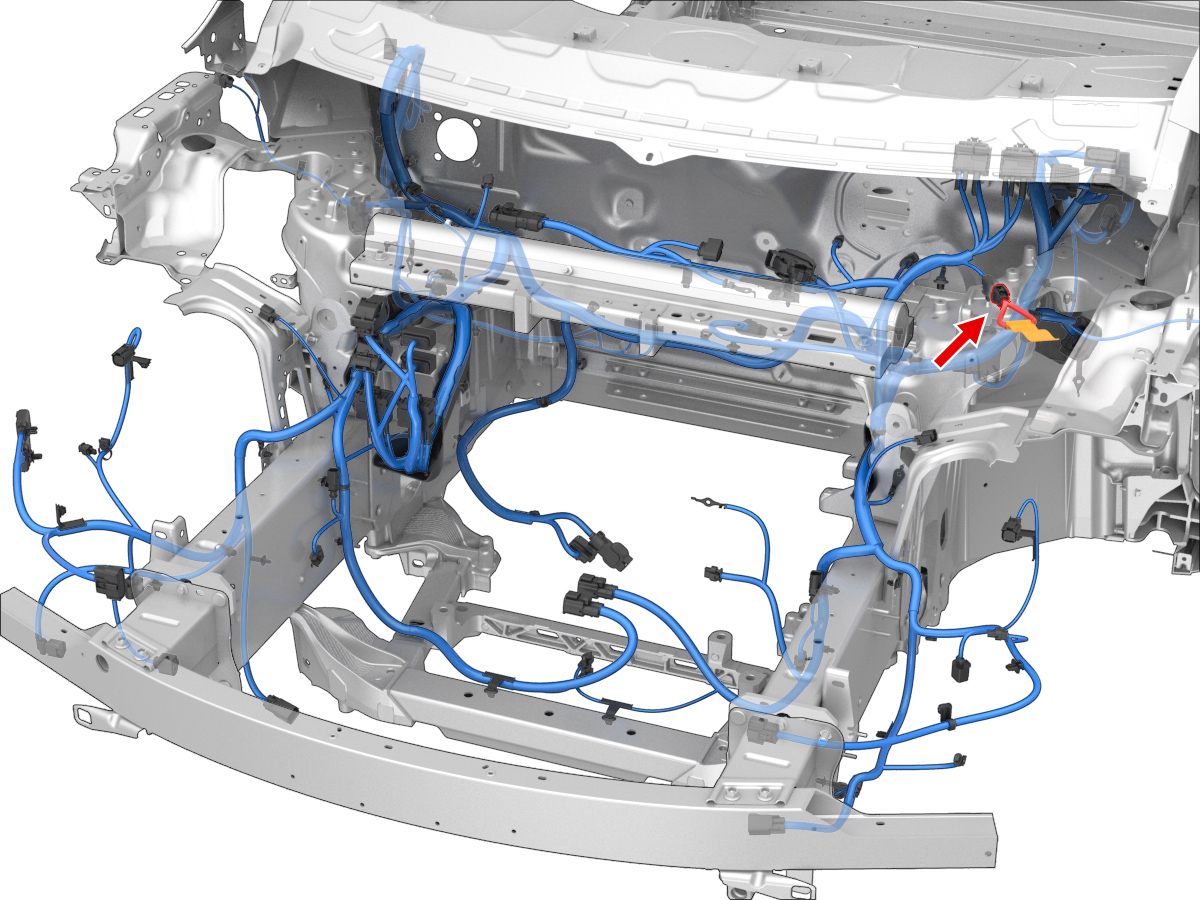

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1				BU	0.75	TESLA	MAT-120-240	X900F	5
2	MOLEX	33012-3002	1.5x0.8F	VT	0.75	TESLA	MAT-120-240	X900F	4
3				RD	0.75	TESLA	MAT-120-240	X900F	6
4	MOLEX	33012-3002	1.5x0.8F	VT	0.75	TESLA	MAT-120-240	X900F	2
5				BU	0.75	TESLA	MAT-120-240	X900F	1
6				RD	0.75	TESLA	MAT-120-240	X900F	3
