X901F

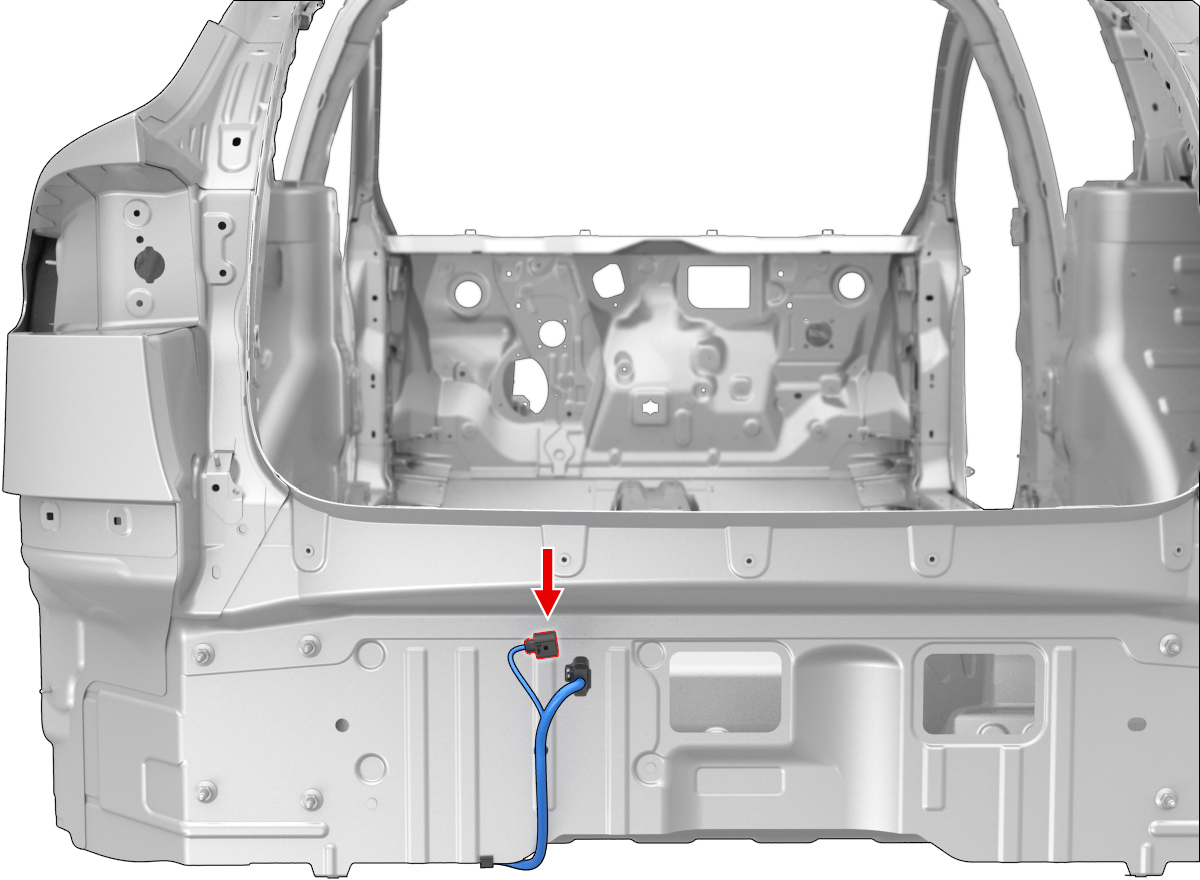

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1-968857-1 | 2.8x0.8FS | BU | 1.50 | AMP | 828905-1 | X164 | 1 |
| 2 | AMP | 1-968857-1 | 2.8x0.8FS | RD | 2.50 | AMP | 828905-1 | X034 | 2 |
