X901M

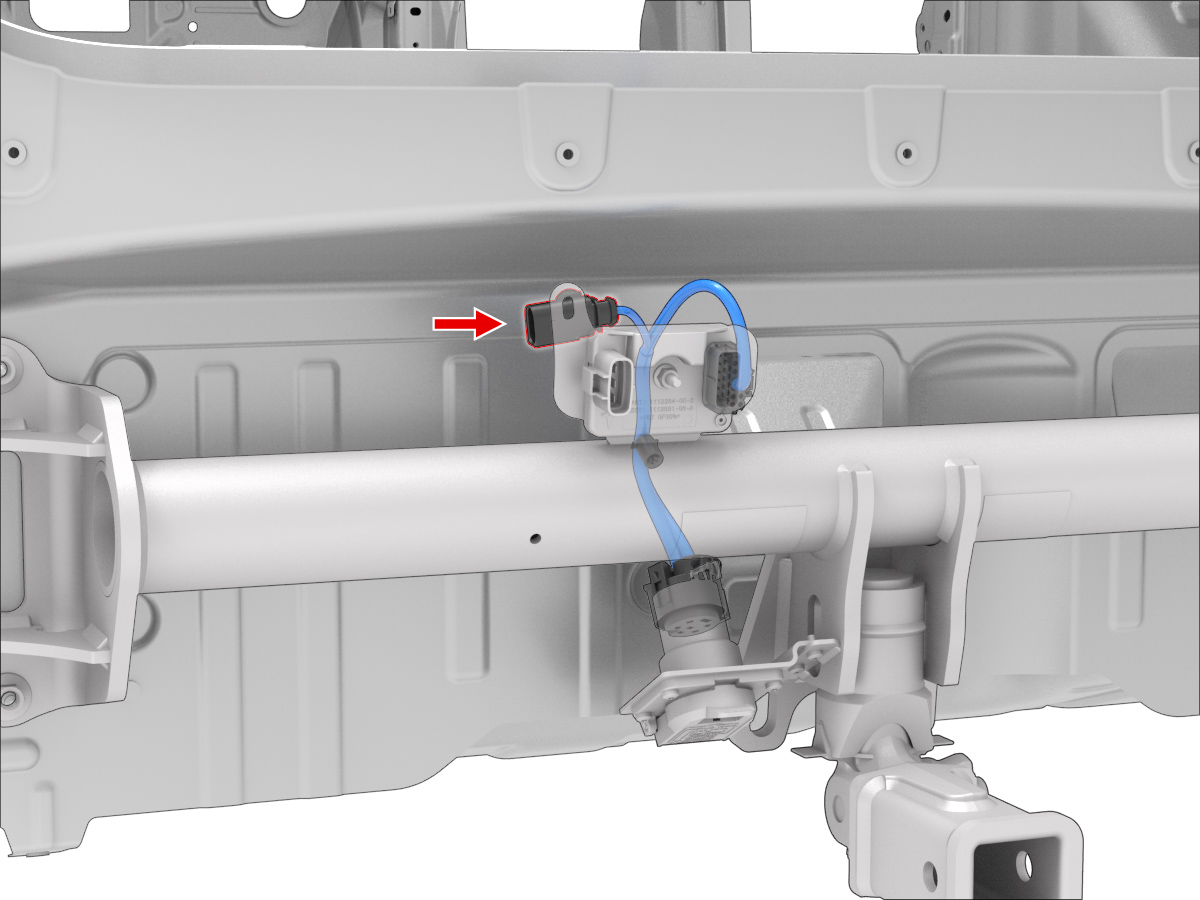

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 2-964302-1 | 2.8x0.8MS | BU | 2.50 | AMP | 963292-1 | X250 | C |
| 2 | AMP | 2-964302-1 | 2.8x0.8MS | RD | 2.50 | AMP | 963292-1 | X250 | E |
