X906M

Tesla Part Number

1055685-01-A

Connector

MOLEX 33482-2102

Color

GY

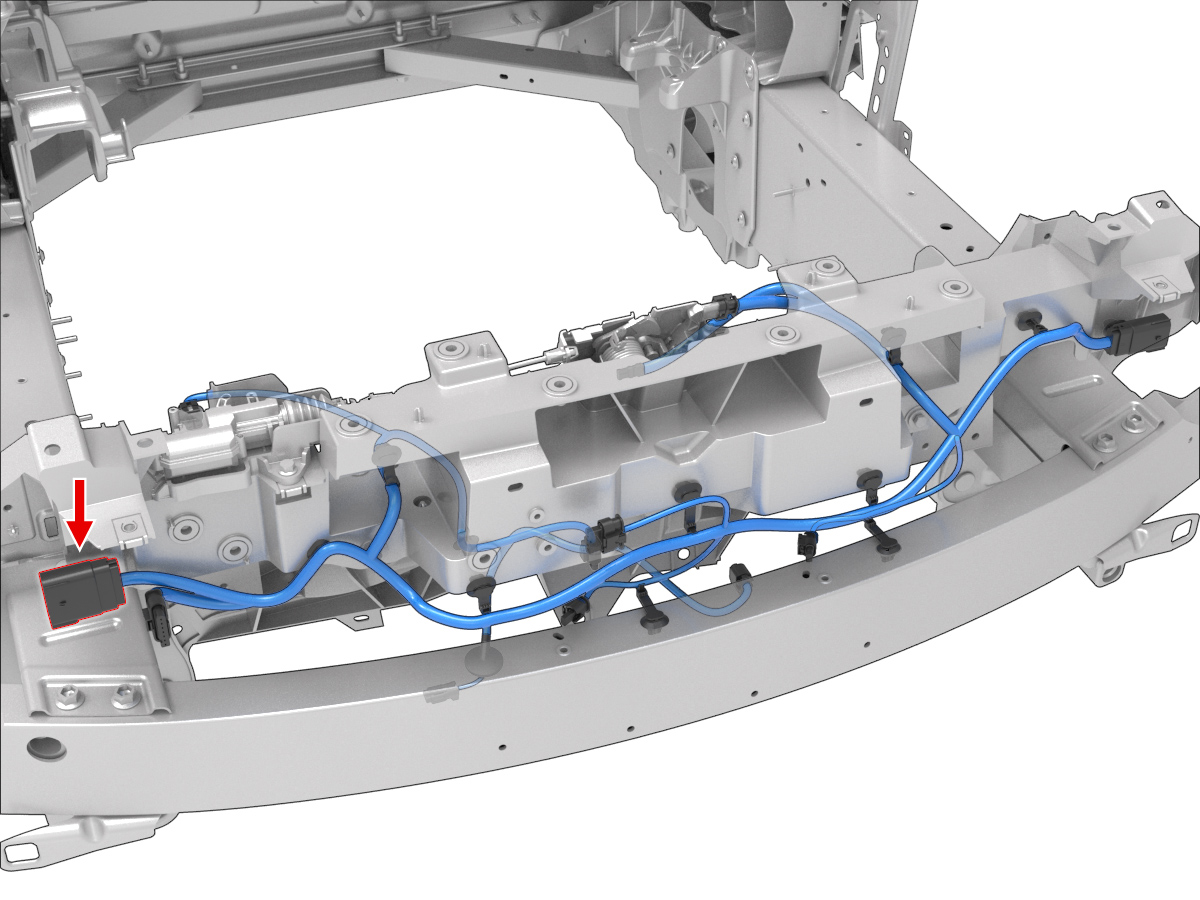

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	VT	0.50	TESLA	MAT-120-240	X330	1
2	MOLEX	33000-0004	1.5x0.8M	BU	0.50	TESLA	MAT-120-240	X330	2
3	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X485	1
4	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X333	3
5	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X202	1
6	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X202	2
7	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X485	3
8	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X127	3
9	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X127	4
10	unused
11	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X612	4
12	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X612	3
13	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X612	2
14	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240
15	MOLEX	33000-0004	1.5x0.8M	BK	0.50	TESLA	MAT-120-240	X527	1
16	MOLEX	33000-0004	1.5x0.8M	BN	0.50	TESLA	MAT-120-240	X527	2
17	MOLEX	33000-0004	1.5x0.8M	BN/YE	0.35	TESLA	MAT-120-240
18	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X125	2
19	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X125	3
20	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X125	4
