X907F

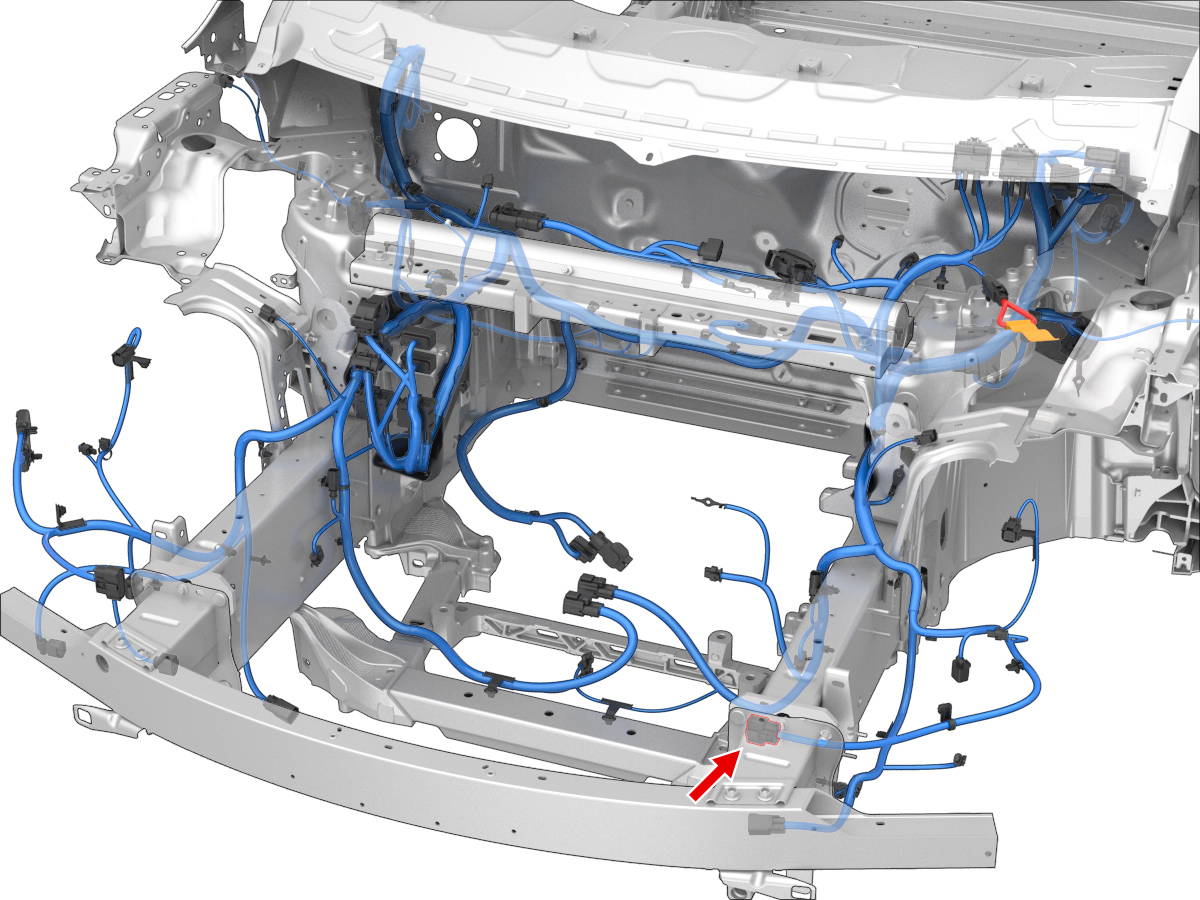

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3004 | 1.5x0.8F | YE | 0.35 | TESLA | MAT-120-240 | X037 | 8 |
| 2 | MOLEX | 33012-3004 | 1.5x0.8F | BN | 0.35 | TESLA | MAT-120-240 | X037 | 9 |
| 3 | MOLEX | 33012-3004 | 1.5x0.8F | BK | 0.50 | TESLA | MAT-120-240 | G150 | 3 |
| 4 | MOLEX | 33012-3004 | 1.5x0.8F | TN | 0.35 | TESLA | MAT-120-240 | X010 | J2 |
| 5 | MOLEX | 33012-3004 | 1.5x0.8F | BU | 0.35 | TESLA | MAT-120-240 | X025 | C2 |
| 6 | MOLEX | 33012-3004 | 1.5x0.8F | YE | 0.35 | TESLA | MAT-120-240 | X010 | H5 |
| 7 | MOLEX | 33012-3004 | 1.5x0.8F | WH | 0.35 | TESLA | MAT-120-240 | X010 | J3 |
| 8 | unused | ||||||||
| 9 | unused | ||||||||
| 10 | unused | ||||||||
| 11 | unused | ||||||||
| 12 | unused | ||||||||
