X907M

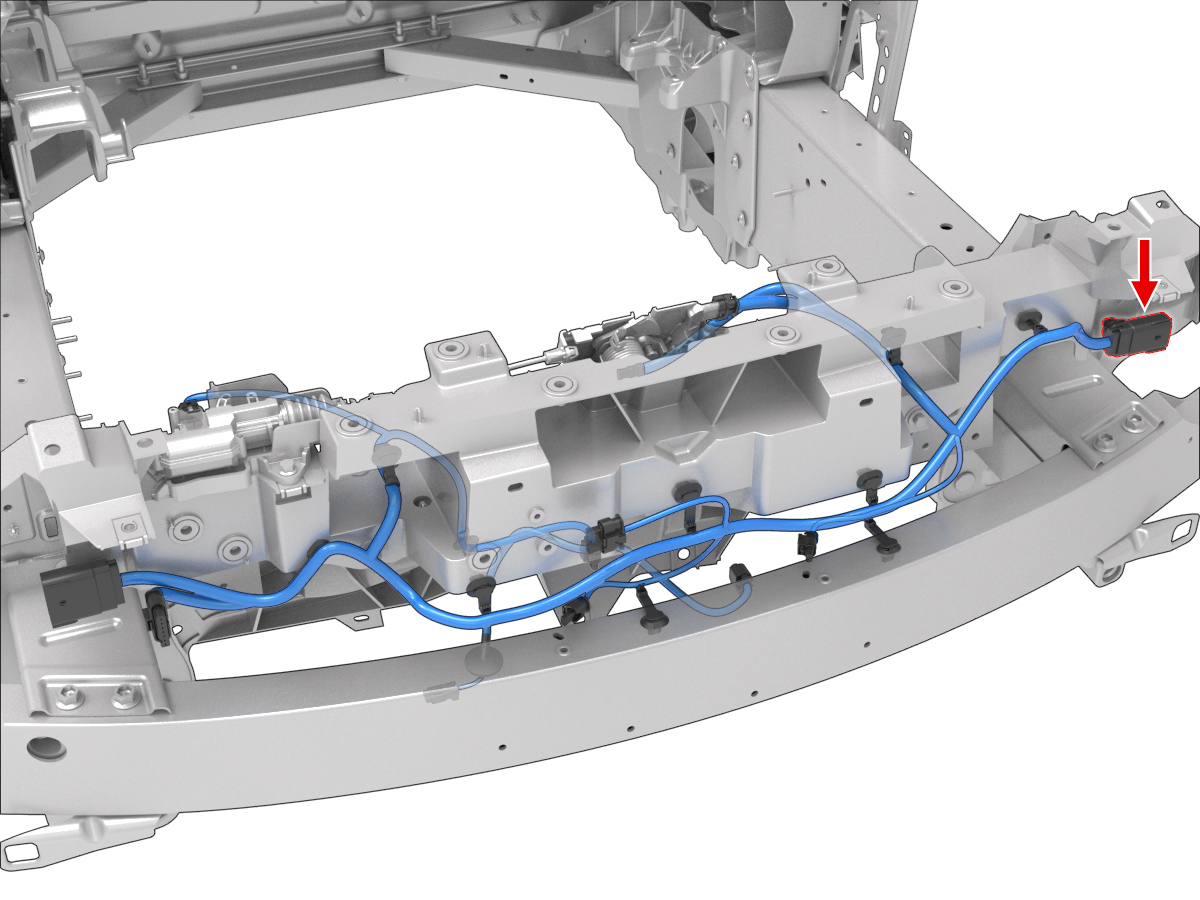

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33000-0004 | 1.5x0.8M | YE | 0.35 | TESLA | MAT-120-240 | X203 | 1 |
| 2 | MOLEX | 33000-0004 | 1.5x0.8M | BN | 0.35 | TESLA | MAT-120-240 | X203 | 2 |
| 3 | MOLEX | 33000-0004 | 1.5x0.8M | BK | 0.50 | TESLA | MAT-120-240 | ||
| 4 | MOLEX | 33000-0004 | 1.5x0.8M | TN | 0.35 | TESLA | MAT-120-240 | X332 | 1 |
| 5 | unused | ||||||||
| 6 | MOLEX | 33000-0004 | 1.5x0.8M | YE | 0.35 | TESLA | MAT-120-240 | X332 | 3 |
| 7 | MOLEX | 33000-0004 | 1.5x0.8M | WH | 0.35 | TESLA | MAT-120-240 | X333 | 1 |
| 8 | unused | ||||||||
| 9 | unused | ||||||||
| 10 | unused | ||||||||
| 11 | unused | ||||||||
| 12 | unused | ||||||||
