X909F

Tesla Part Number

1034184-10-A

Connector

MOLEX 33472-2007

Color

GY

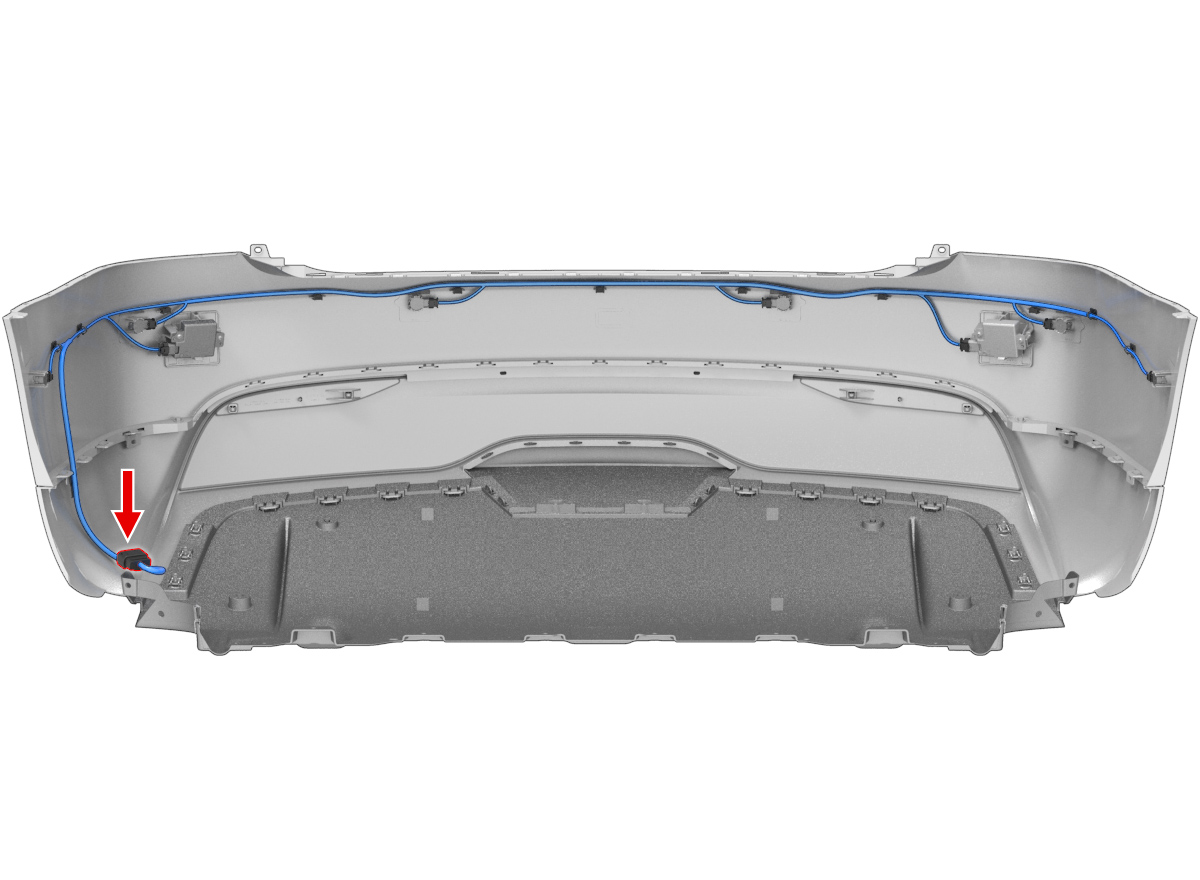

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3004	1.5x0.8F	BK	0.35	TESLA	MAT-120-240	X497	3
2	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X497	2
3	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X497	1
4	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X497	4
5	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240
6	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X147	2
7	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X146	2
8	MOLEX	33012-3004	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X145	2
9	unused
10	unused
11	MOLEX	33012-3004	1.5x0.8F	BK	0.35	TESLA	MAT-120-240	X498	3
12	MOLEX	33012-3004	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X498	2
13	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X498	1
14	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X498	4
15	MOLEX	33012-3004	1.5x0.8F	BN	0.35	TESLA	MAT-120-240
16	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X144	2
17	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X139	2
18	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X138	2
19	unused
20	unused
