X913M

Tesla Part Number

1486227-01-A

Connector

DELPHI 33239519

Color

NA

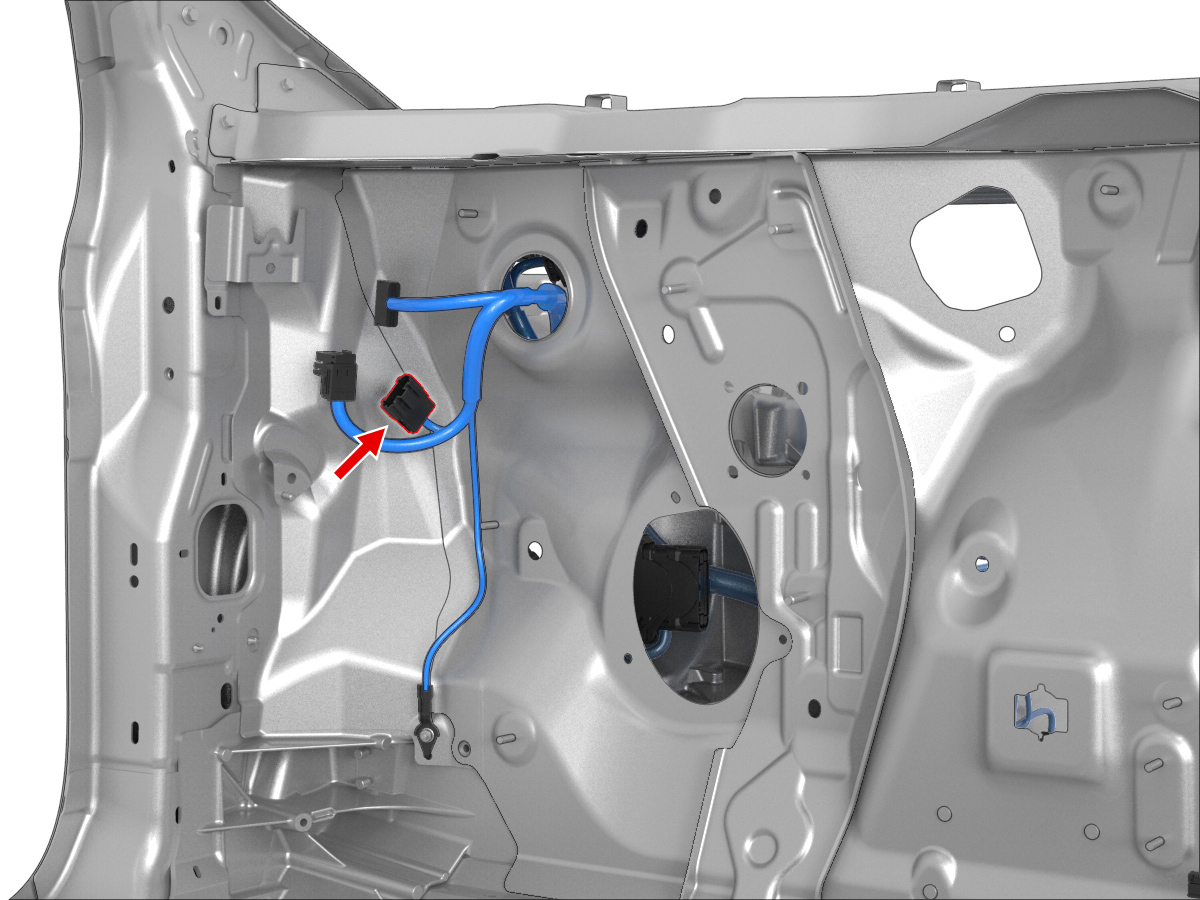

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	DELPHI	35412744	1.2x0.6M	GN/WH	0.35
3	DELPHI	35412744	1.2x0.6M	GN	0.35
4	DELPHI	35091062	1.2x0.6M	WH	0.50			X995F	20
5	DELPHI	35412744	1.2x0.6M	GN	0.35			X990F	6
6	DELPHI	35412744	1.2x0.6M	BN	0.35			X990F	5
7	DELPHI	35412744	1.2x0.6M	RD	0.35			X990F	8
8	DELPHI	35412744	1.2x0.6M	GY	0.35			X990F	7
9	DELPHI	35412744	1.2x0.6M	BU	0.35			X990F	3
10	DELPHI	35412744	1.2x0.6M	RD	0.35			X596_1	3
11	DELPHI	35091062	1.2x0.6M	WH	0.50			X990F	13
12	DELPHI	35412744	1.2x0.6M	YE	0.35			X620	2
13	DELPHI	35412744	1.2x0.6M	GY	0.35			X620	1
14	DELPHI	35091062	1.2x0.6M	RD	0.50			X900M	3
15	unused
16	unused
17	unused
18	unused
19	unused
20	unused
