X914M

Tesla Part Number

1486227-00-A

Connector

DELPHI 33239518

Color

BK

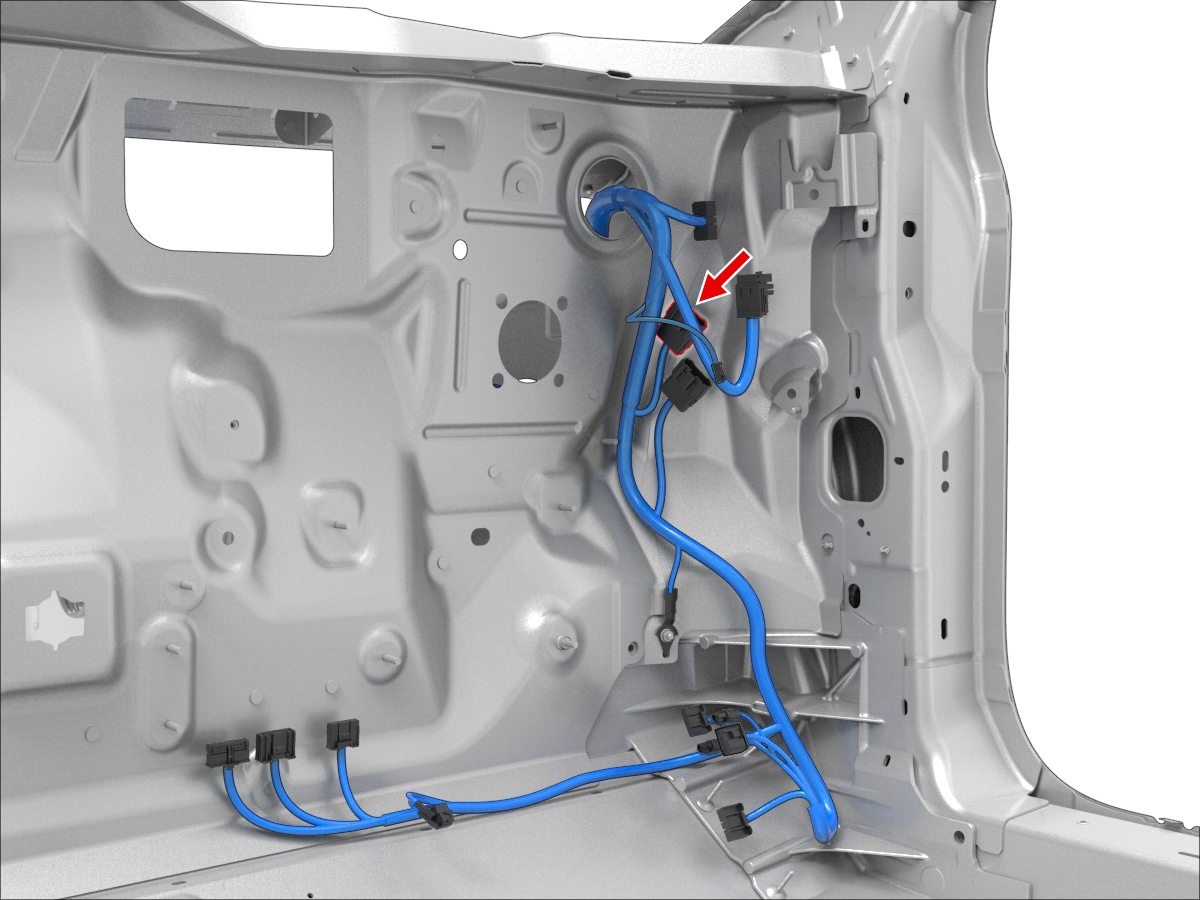

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35412744	1.2x0.6M	BK	0.35			X068	16
2	DELPHI	35412744	1.2x0.6M	BN	0.35			X068	15
3	DELPHI	35412744	1.2x0.6M	GY	0.35			X068	13
4	DELPHI	35412744	1.2x0.6M	WH	0.35			X068	14
5	DELPHI	35091062	1.2x0.6M	RD	0.50			X900M	6
6	DELPHI	35091062	1.2x0.6M	BU	0.50			X151	31
7	DELPHI	35091062	1.2x0.6M	GY	0.50			X151	18
8	DELPHI	35412744	1.2x0.6M	BN	0.35			X065	29
9	DELPHI	35412744	1.2x0.6M	VT	0.35			X065	30
10	DELPHI	35412744	1.2x0.6M	WH	0.35			X065	2
11	DELPHI	35412744	1.2x0.6M	GN	0.35			X068	4
12	DELPHI	35412744	1.2x0.6M	RD	0.35			X068	5
13	DELPHI	35412744	1.2x0.6M	VT	0.35			X068	11
14	DELPHI	35412744	1.2x0.6M	YE	0.35			X068	12
15	DELPHI	35412744	1.2x0.6M	GN	0.35			X596_1	1
16	DELPHI	35412744	1.2x0.6M	BN/WH	0.35
17	DELPHI	35412744	1.2x0.6M	BN	0.35
18	DELPHI	35412744	1.2x0.6M	BN	0.35			X065	20
19	DELPHI	35412744	1.2x0.6M	BU	0.35			X065	10
20	DELPHI	35412744	1.2x0.6M	GN	0.35			X065	13
