X921M

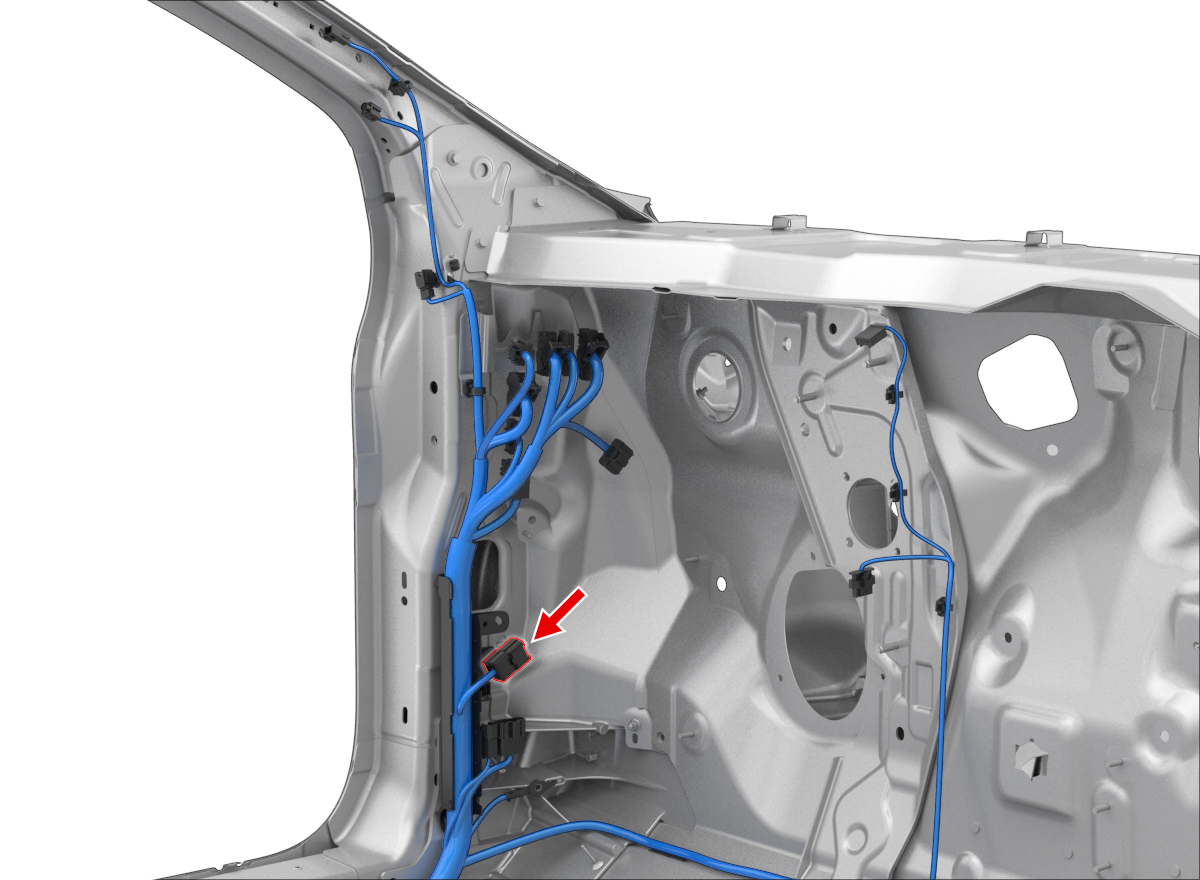

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4542 | 4.8x0.8M | RD | 2.50 | X034 | 4 | ||
| 2 | SUMITOMO | 8230-4532 | 4.8x0.8M | BU | 0.75 | X996M | 13 | ||
| 3 | SUMITOMO | 8230-4532 | 4.8x0.8M | BN | 1.50 | X988M | 10 | ||
| 4 | SUMITOMO | 8230-4542 | 4.8x0.8M | BK | 2.50 | G200 | 1 | ||
| 5 | SUMITOMO | 8230-4532 | 4.8x0.8M | VT | 0.75 | X996M | 14 | ||
| 6 | SUMITOMO | 8230-4532 | 4.8x0.8M | GN | 1.50 | X988M | 20 |
