X930F_1

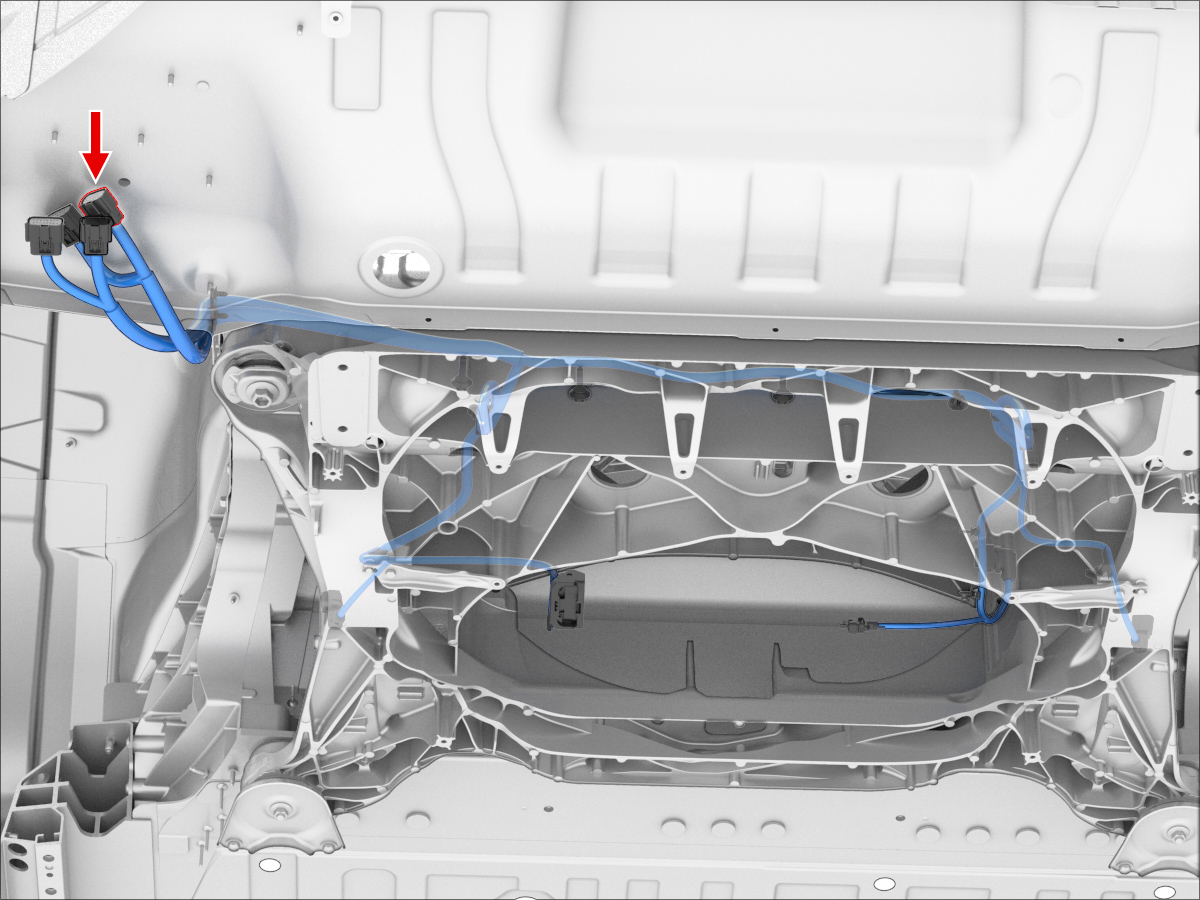

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | WH | 1.00 | TESLA | MAT-120-240 | X322A | 1 | |||
| 2 | BU | 1.00 | TESLA | MAT-120-240 | X319A | 1 | |||
| 3 | unused | ||||||||
| 4 | MOLEX | 33012-3004 | 1.5x0.8F | YE | 0.35 | TESLA | MAT-120-240 | X320A | 12 |
| 5 | MOLEX | 33012-3004 | 1.5x0.8F | RD | 0.35 | TESLA | MAT-120-240 | X320A | 2 |
| 6 | BK | 1.00 | TESLA | MAT-120-240 | X322A | 3 | |||
| 7 | MOLEX | 33012-3004 | 1.5x0.8F | GN | 0.35 | TESLA | MAT-120-240 | X320A | 3 |
| 8 | MOLEX | 33012-3004 | 1.5x0.8F | TN | 0.35 | TESLA | MAT-120-240 | X320A | 22 |
| 9 | MOLEX | 33012-3004 | 1.5x0.8F | WH | 0.50 | TESLA | MAT-120-240 | X328A | 23 |
| 10 | MOLEX | 33012-3004 | 1.5x0.8F | GN | 0.50 | TESLA | MAT-120-240 | X328A | 4 |
| 11 | BK | 1.00 | TESLA | MAT-120-240 | X318A | 3 | |||
| 12 | BK | 1.00 | TESLA | MAT-120-240 | X319A | 3 | |||
