X930M

Tesla Part Number

1516172-01-A

Connector

DELPHI 15521148

Color

GY

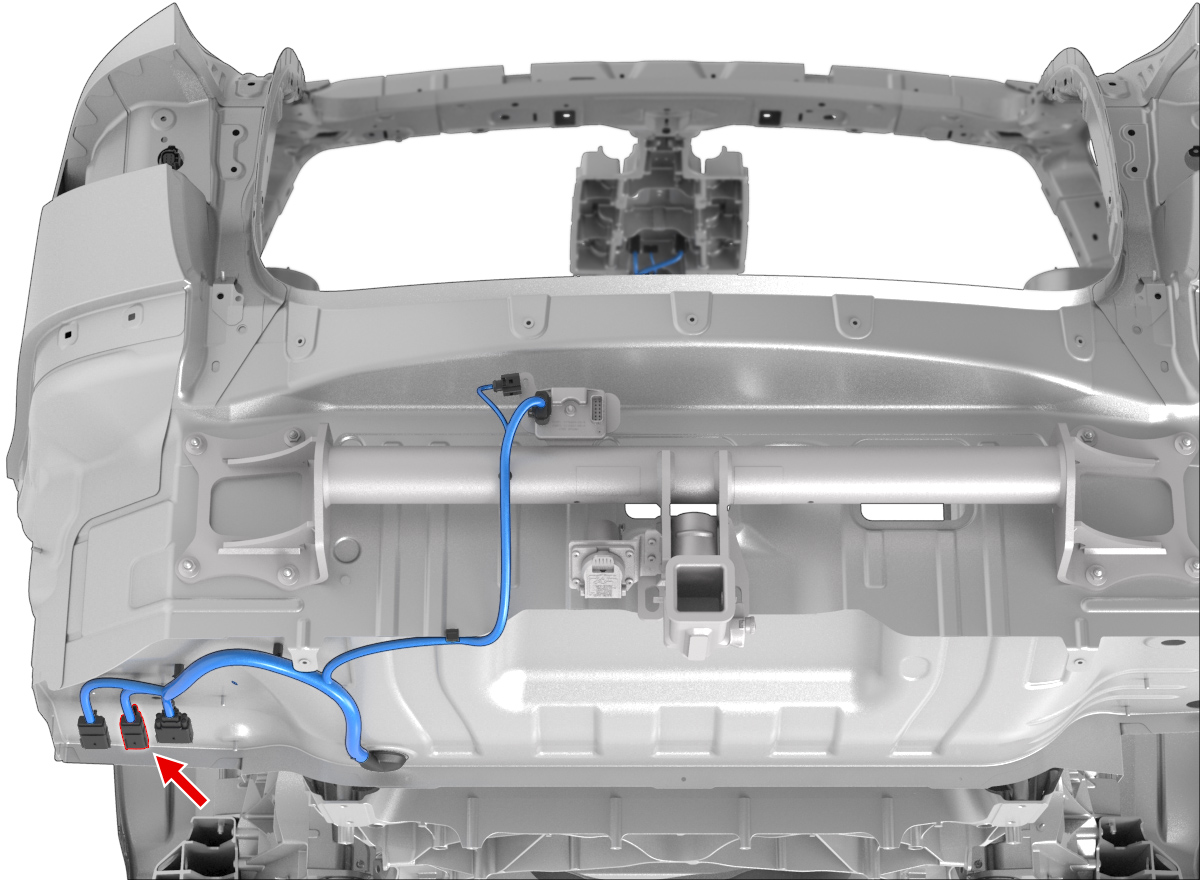

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	13964791	1.5x0.8M	WH	1.50	TESLA	MAT-120-260	X038A	34
2	DELPHI	13964791	1.5x0.8M	BU	1.50	TESLA	MAT-120-260	X988M	11
3	unused
4	DELPHI	13964789	1.5x0.8M	YE	0.35	TESLA	MAT-120-260	X031	38
5	DELPHI	13964789	1.5x0.8M	RD	0.35	TESLA	MAT-120-260	X031	37
6	DELPHI	13964791	1.5x0.8M	BK	1.50	TESLA	MAT-120-260	G290	1
7	DELPHI	13964789	1.5x0.8M	GN	0.35	TESLA	MAT-120-260	X038A	6
8	DELPHI	13964789	1.5x0.8M	TN	0.35	TESLA	MAT-120-260	X038A	21
9	DELPHI	13964789	1.5x0.8M	WH	0.50	TESLA	MAT-120-260	X913F	4
10	DELPHI	13964789	1.5x0.8M	GN	0.50	TESLA	MAT-120-260	X932M	10
11	DELPHI	13964791	1.5x0.8M	BK	1.50	TESLA	MAT-120-260	G290	1
12	DELPHI	13964791	1.5x0.8M	BK	1.50	TESLA	MAT-120-260	G290	1
