X932F_1

Tesla Part Number

1067989-00-A

Connector

MOLEX 33472-1606

Color

BK

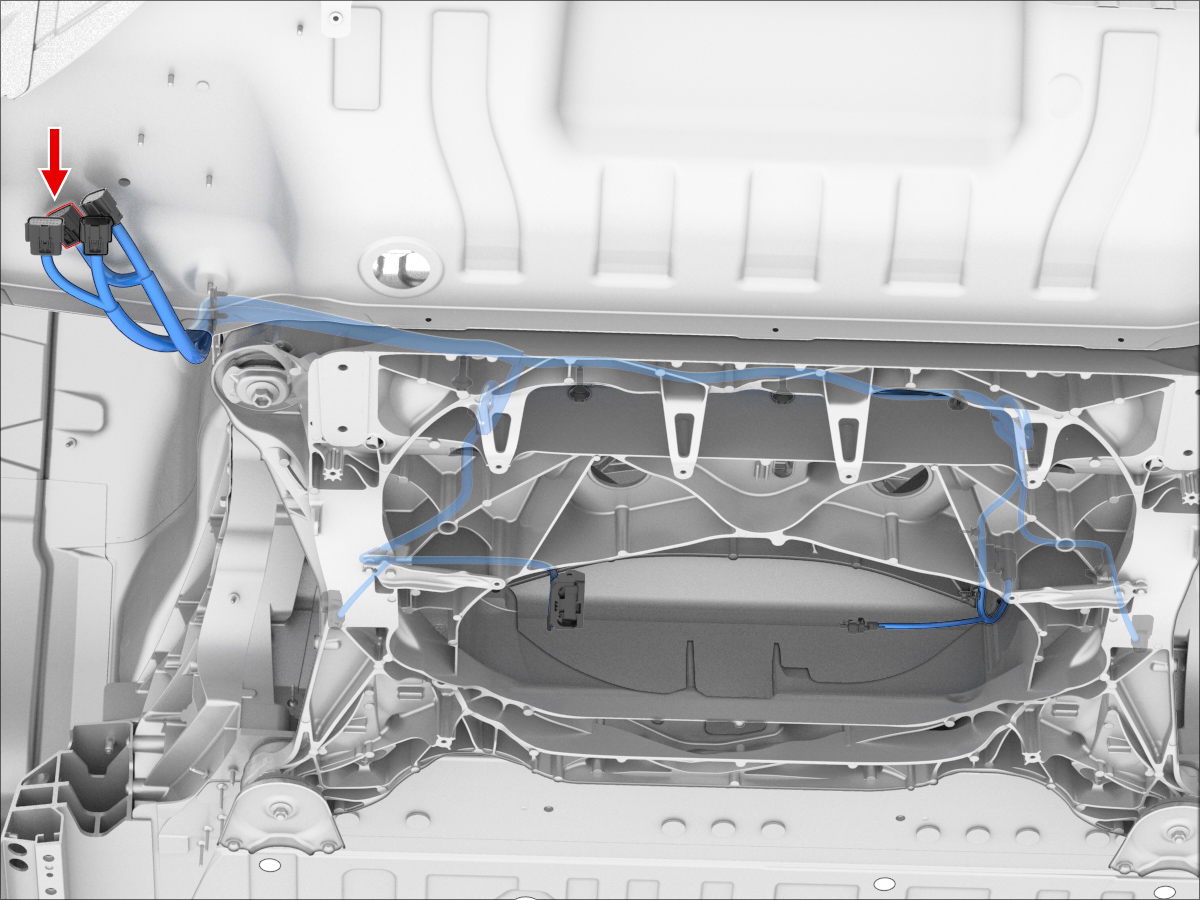

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3002	1.5x0.8F	VT	1.00	TESLA	MAT-120-240	X318A	1
2	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X328A	3
3	MOLEX	33012-3004	1.5x0.8F	GN	0.50	TESLA	MAT-120-240	X320A	23
4	MOLEX	33012-3004	1.5x0.8F	BK	0.35	TESLA	MAT-120-240	X328A	13
5	MOLEX	33012-3004	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X085_1	3
6	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X085_1	2
7	MOLEX	33012-3004	1.5x0.8F	BN	0.35	TESLA	MAT-120-240	X085_1	1
8	MOLEX	33012-3004	1.5x0.8F	BK	0.35	TESLA	MAT-120-240	X320A	13
9	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X328A	22
10	unused
11	MOLEX	33012-3004	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X328A	12
12	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X328A	2
13	MOLEX	33012-3004	1.5x0.8F	BN	0.35	TESLA	MAT-120-240	X086_1	1
14	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X086_1	2
15	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X086_1	3
16	MOLEX	33012-3004	1.5x0.8F	WH	0.50	TESLA	MAT-120-240	X320A	4
