X932M

Tesla Part Number

1516174-00-A

Connector

DELPHI 15521020

Color

BK

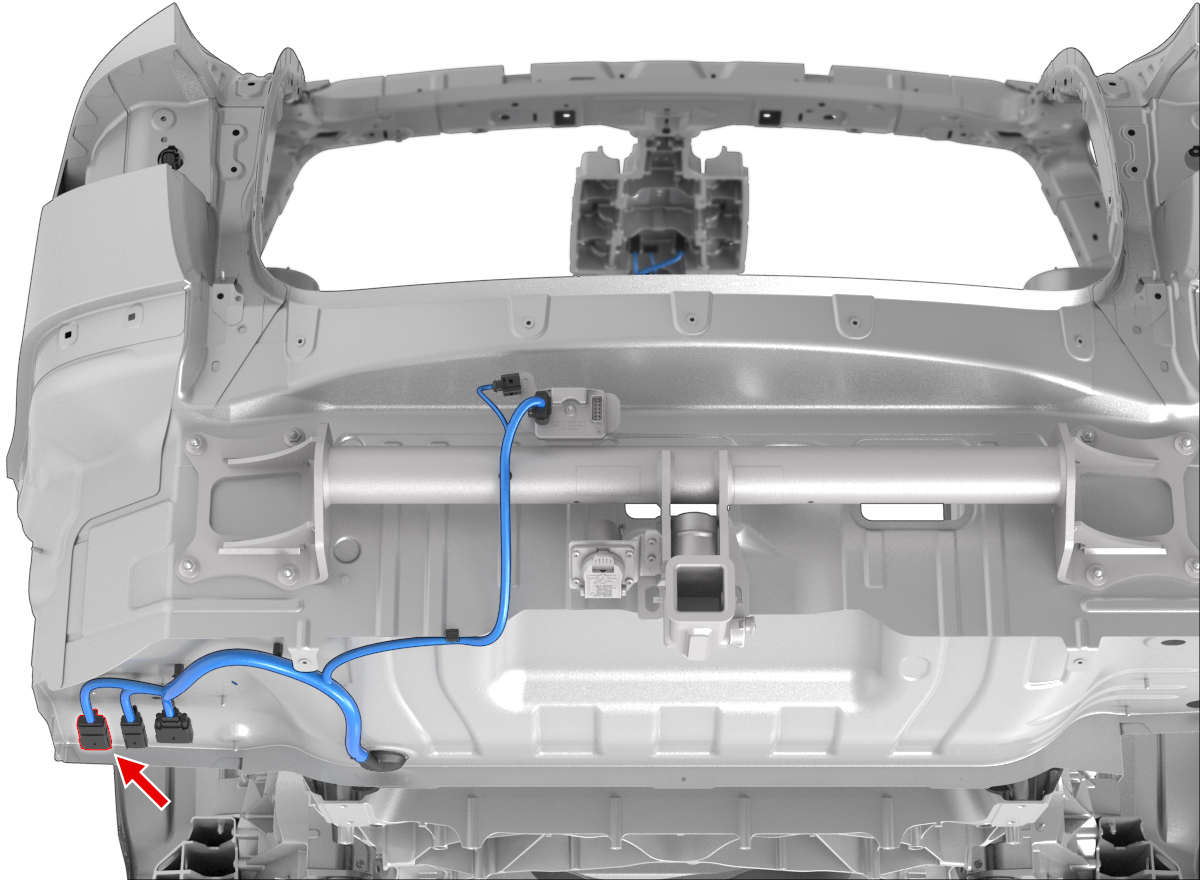

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	13964791	1.5x0.8M	VT	1.50	TESLA	MAT-120-240	X988M	1
2	DELPHI	13964789	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X038A	7
3	unused
4	DELPHI	13964789	1.5x0.8M	BK	0.35	TESLA	MAT-120-240	G290	1
5	DELPHI	13964789	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X997M	8
6	DELPHI	13964789	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X997M	9
7	DELPHI	13964789	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X997M	10
8	DELPHI	13964789	1.5x0.8M	BK	0.35	TESLA	MAT-120-240	G290	1
9	DELPHI	13964789	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X038A	20
10	DELPHI	13964789	1.5x0.8M	GN	0.50	TESLA	MAT-120-240	X930M	10
11	DELPHI	13964789	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X031	40
12	DELPHI	13964789	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X031	39
13	DELPHI	13964789	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X997M	20
14	DELPHI	13964789	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X997M	19
15	DELPHI	13964789	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X997M	18
16	DELPHI	13964789	1.5x0.8M	WH	0.50	TESLA	MAT-120-240	X913F	11
