X941M

Tesla Part Number

1621415-01-A

Connector

AMP 2-1719843-5

Color

WH

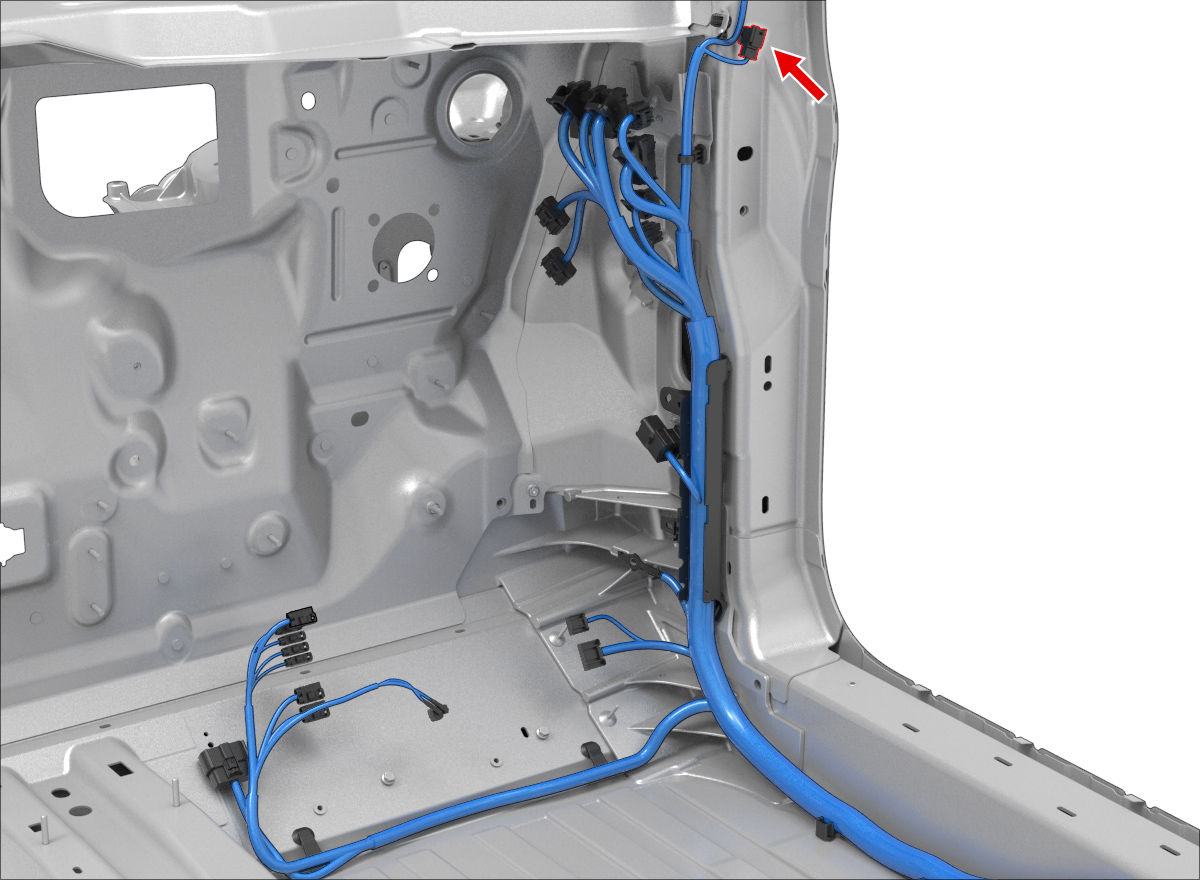

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	5-963716-1	0.63x0.63M	GN	0.50			X171	16
2	AMP	5-963716-1	0.63x0.63M	GY	0.50			X171	15
3	unused
4	AMP	6-928918-1	0.63x0.63M	BU	0.35			X996F	20
5	AMP	6-928918-1	0.63x0.63M	GN	0.35			X996F	19
6	AMP	5-963716-1	0.63x0.63M	VT	0.50			X174	4
7	AMP	5-963716-1	0.63x0.63M	RD	0.50			X174	3
8	AMP	6-928918-1	0.63x0.63M	BK	0.35			G350	1
9	AMP	6-928918-1	0.63x0.63M	WH	0.35			X561	8
10	AMP	6-928918-1	0.63x0.63M	YE	0.35			X561	7
