X947F

Tesla Part Number

1486226-00-A

Connector

DELPHI 33239497

Color

BK

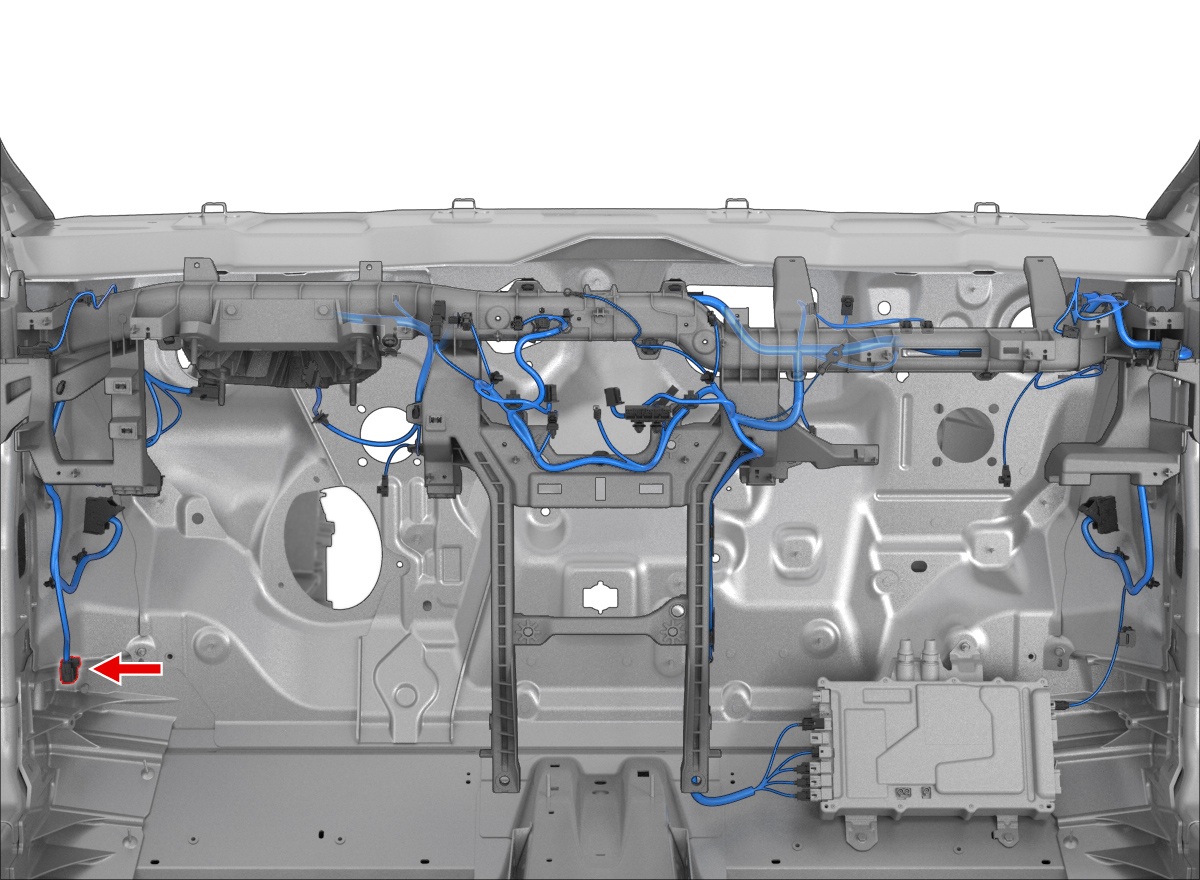

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35410019	1.2x0.6F	YE	0.35			X180	8
2	DELPHI	35410019	1.2x0.6F	BU	0.35			X180	9
3	DELPHI	35410019	1.2x0.6F	GN	0.35			X180	10
4	DELPHI	35410019	1.2x0.6F	BK	0.35			X180	11
5	DELPHI	35410019	1.2x0.6F	GN/WH	0.35			X437	13
6	DELPHI	35410019	1.2x0.6F	GN	0.35			X437	14
7	DELPHI	35410019	1.2x0.6F	YE	0.35			X237	1
8	DELPHI	35410019	1.2x0.6F	WH	0.35			X237	2
9	DELPHI	35410019	1.2x0.6F	VT	0.35			X180	12
10	DELPHI	35410019	1.2x0.6F	RD	0.35			X180	13
11	DELPHI	35410019	1.2x0.6F	GY	0.35			X229	1
12	DELPHI	35410019	1.2x0.6F	VT	0.35			X229	2
13	DELPHI	35410019	1.2x0.6F	TN	0.35			X230	1
14	DELPHI	35410019	1.2x0.6F	GY	0.35			X230	2
15	DELPHI	35410019	1.2x0.6F	BU	0.35			X231	1
16	DELPHI	35410019	1.2x0.6F	RD	0.35			X231	2
17	DELPHI	35410019	1.2x0.6F	GY	0.35			X233	1
18	DELPHI	35410019	1.2x0.6F	BU	0.35			X233	2
19	DELPHI	35410019	1.2x0.6F	GN	0.35			X596	7
20	DELPHI	35410019	1.2x0.6F	WH	0.35			X596	4
