X947M

Tesla Part Number

1486227-00-A

Connector

DELPHI 33239518

Color

BK

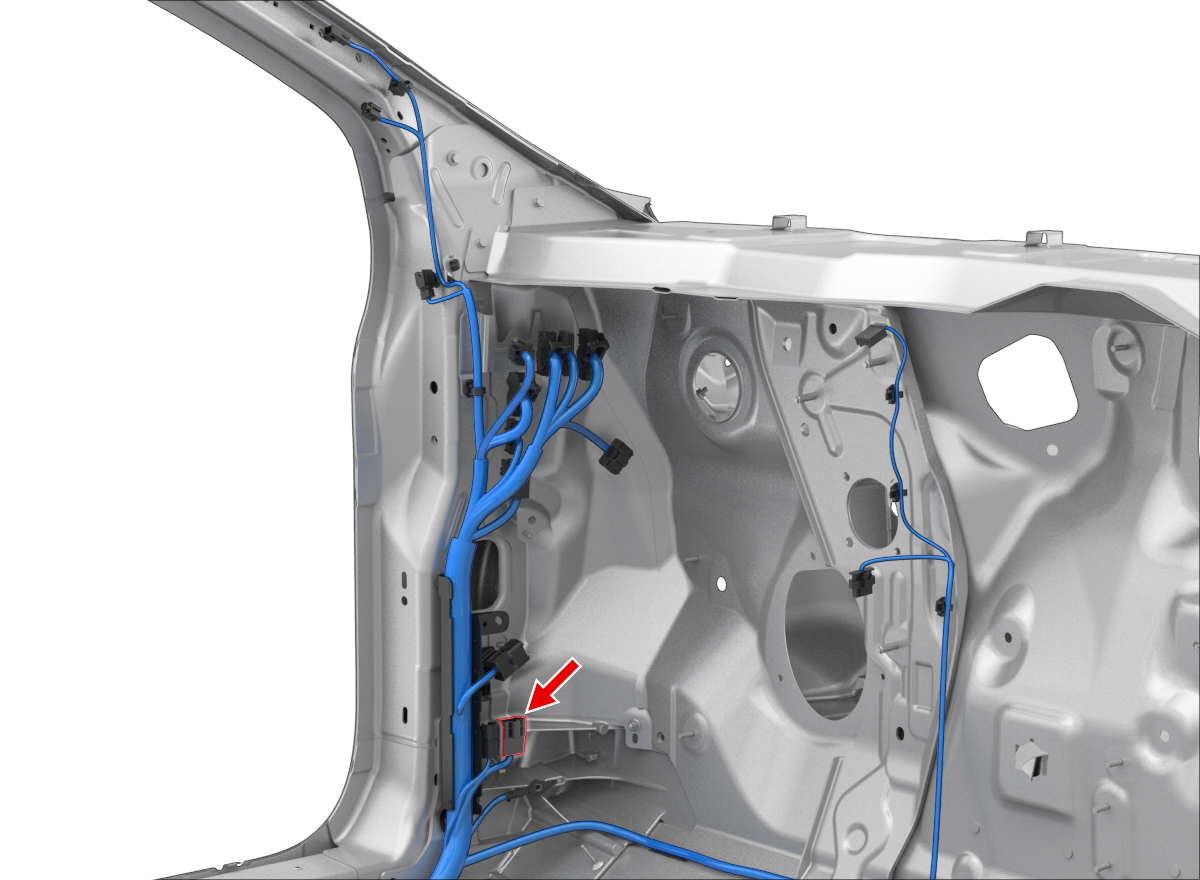

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35412744	1.2x0.6M	YE	0.35			X200	17
2	DELPHI	35412744	1.2x0.6M	BU	0.35			X200	16
3	DELPHI	35412744	1.2x0.6M	GN	0.35			X200	21
4	DELPHI	35412744	1.2x0.6M	BK	0.35			X200	20
5	DELPHI	35412744	1.2x0.6M	GN/WH	0.35
6	DELPHI	35412744	1.2x0.6M	GN	0.35
7	DELPHI	35412744	1.2x0.6M	YE	0.35			X200	25
8	DELPHI	35412744	1.2x0.6M	WH	0.35			X200	24
9	DELPHI	35412744	1.2x0.6M	VT	0.35			X200	9
10	DELPHI	35412744	1.2x0.6M	RD	0.35			X200	10
11	DELPHI	35412744	1.2x0.6M	GY	0.35			X200	14
12	DELPHI	35412744	1.2x0.6M	VT	0.35			X200	15
13	DELPHI	35412744	1.2x0.6M	TN	0.35			X200	18
14	DELPHI	35412744	1.2x0.6M	GY	0.35			X200	19
15	DELPHI	35412744	1.2x0.6M	BU	0.35			X200	5
16	DELPHI	35412744	1.2x0.6M	RD	0.35			X200	6
17	DELPHI	35412744	1.2x0.6M	GY	0.35			X200	22
18	DELPHI	35412744	1.2x0.6M	BU	0.35			X200	23
19	unused
20	unused
