X950F

Tesla Part Number

1048099-00-A

Connector

YAZAKI 7287-1918

Color

WH

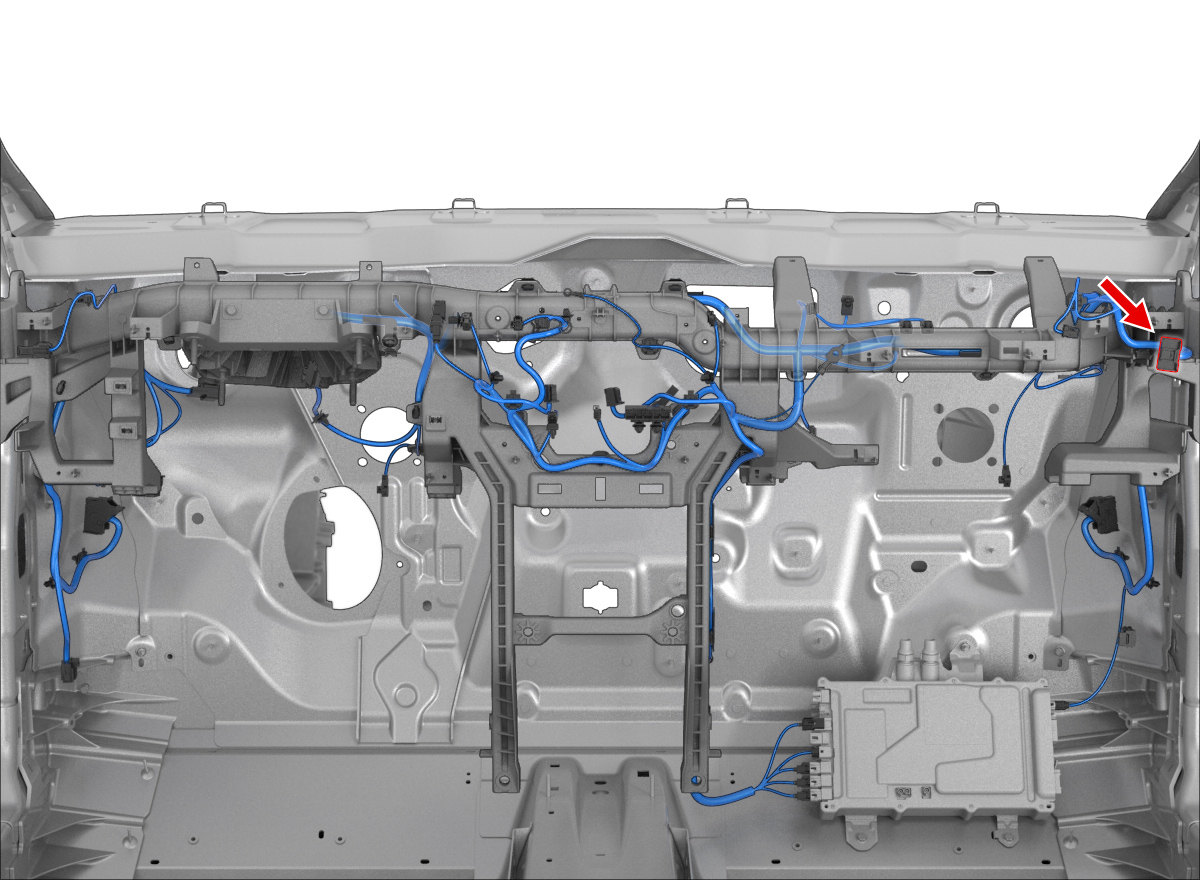

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0213	1.5x0.64F	GN	0.75			X055	31
2	unused
3	unused
4	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X055	38
5	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X055	37
6	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X055	40
7	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X055	39
8	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35
9	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35
10	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X055	42
11	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X055	41
12	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X055	44
13	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X035	36
14	SUMITOMO	8240-0213	1.5x0.64F	GY	0.75			X055	1
15	SUMITOMO	8240-0213	1.5x0.64F	WH	0.75			X055	32
16	SUMITOMO	8100-3625	0.64x0.64F	YE	0.50			X055	16
17	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X055	15
18	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X035	20
19	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X035	19
20	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X035	15
21	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X035	18
22	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X035	5
23	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X035	4
24	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X035	37
25	unused
26	SUMITOMO	8240-0213	1.5x0.64F	RD	0.75			X055	2
