X954F

Tesla Part Number

1486224-00-A

Connector

DELPHI 33257519

Color

BK

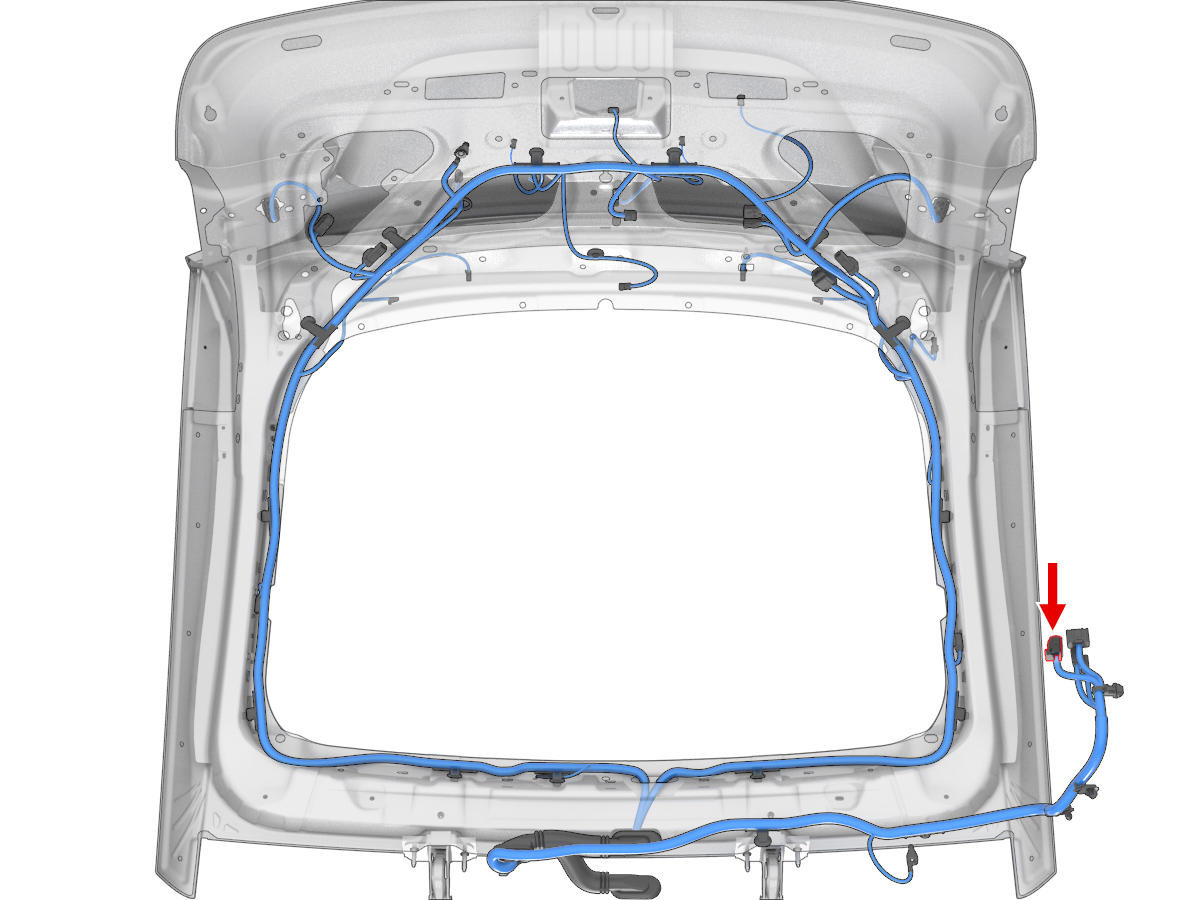

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35072406	1.2x0.6F	BU	1.50			X790	4
2	unused
3	DELPHI	35410019	1.2x0.6F	RD	0.35			X342	1
4	DELPHI	35410019	1.2x0.6F	BU	0.35			X563	7
5	DELPHI	35410019	1.2x0.6F	GN	0.35			X563	9
6	DELPHI	35072403	1.2x0.6F	WH	0.50			X344	1
7	DELPHI	35072403	1.2x0.6F	BU	0.50			X341	2
8	DELPHI	35072406	1.2x0.6F	VT	1.50			X790	1
9	DELPHI	35072406	1.2x0.6F	YE	1.50			X790	10
10	DELPHI	35410019	1.2x0.6F	BU	0.35			X340	3
11	DELPHI	35410019	1.2x0.6F	GY	0.35			X340	4
12	DELPHI	35410019	1.2x0.6F	YE	0.35			X347	1
13	DELPHI	35072403	1.2x0.6F	RD	0.50			X343	1
14	unused
15	DELPHI	35072403	1.2x0.6F	GY	0.50			X341	1
16	DELPHI	35072406	1.2x0.6F	GN	1.50			X790	7
