X954M

Tesla Part Number

1486225-00-A

Connector

DELPHI 33257537

Color

BK

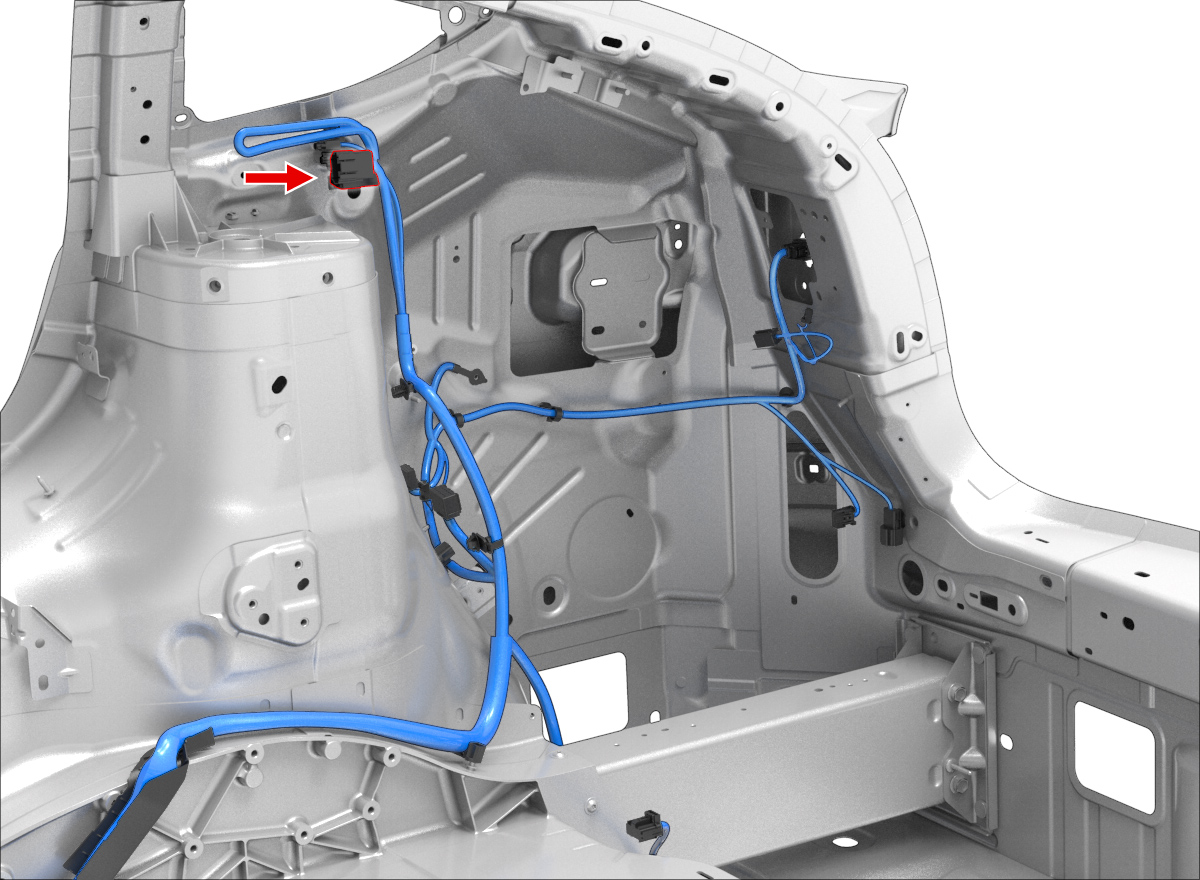

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35091060	1.2x0.6M	BU	1.50			X570	6
2	unused
3	DELPHI	35412744	1.2x0.6M	RD	0.35			X052	7
4	DELPHI	35412744	1.2x0.6M	BU	0.35			X174	11
5	DELPHI	35412744	1.2x0.6M	GN	0.35			X174	12
6	DELPHI	35412744	1.2x0.6M	WH	0.35			X052	8
7	DELPHI	35091062	1.2x0.6M	BU	0.50			X062	18
8	DELPHI	35091060	1.2x0.6M	VT	1.50			X570	12
9	DELPHI	35091060	1.2x0.6M	YE	1.50			X570	5
10	DELPHI	35412744	1.2x0.6M	BU	0.35			X052	13
11	DELPHI	35412744	1.2x0.6M	GY	0.35			X052	12
12	DELPHI	35412744	1.2x0.6M	YE	0.35			X052	15
13	DELPHI	35412744	1.2x0.6M	RD	0.35			X052	9
14	unused
15	DELPHI	35091062	1.2x0.6M	GY	0.50			X062	19
16	DELPHI	35091060	1.2x0.6M	GN	1.50			X570	11
