X955F

Tesla Part Number

1500346-00-A

Connector

SUMITOMO 6098-6819

Color

WH

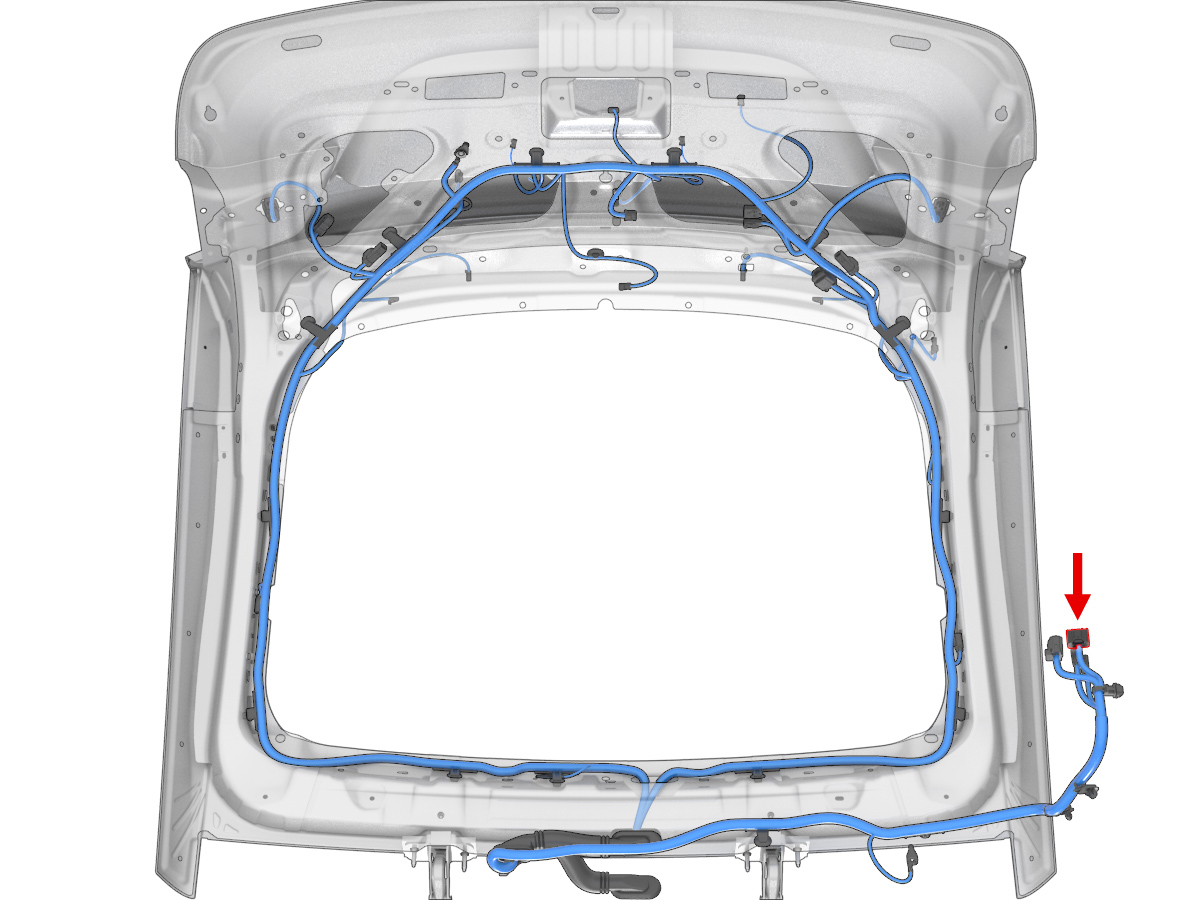

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X273	4
2	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X273	3
3	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X274	1
4	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X273	2
5	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X563	1
6	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X296	1
7	SUMITOMO	8240-0215	1.5x0.64F	BN	0.35
8	SUMITOMO	8240-4932	4.8x0.8F	RD	2.50			X310	1
9	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X271	2
10	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X271	3
11	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X271	4
12	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X342	3
13	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35
14	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X340	1
15	SUMITOMO	8240-0215	1.5x0.64F	TN	0.50			X340	2
