X955M

Tesla Part Number

1500347-00-A

Connector

SUMITOMO 6098-6816

Color

WH

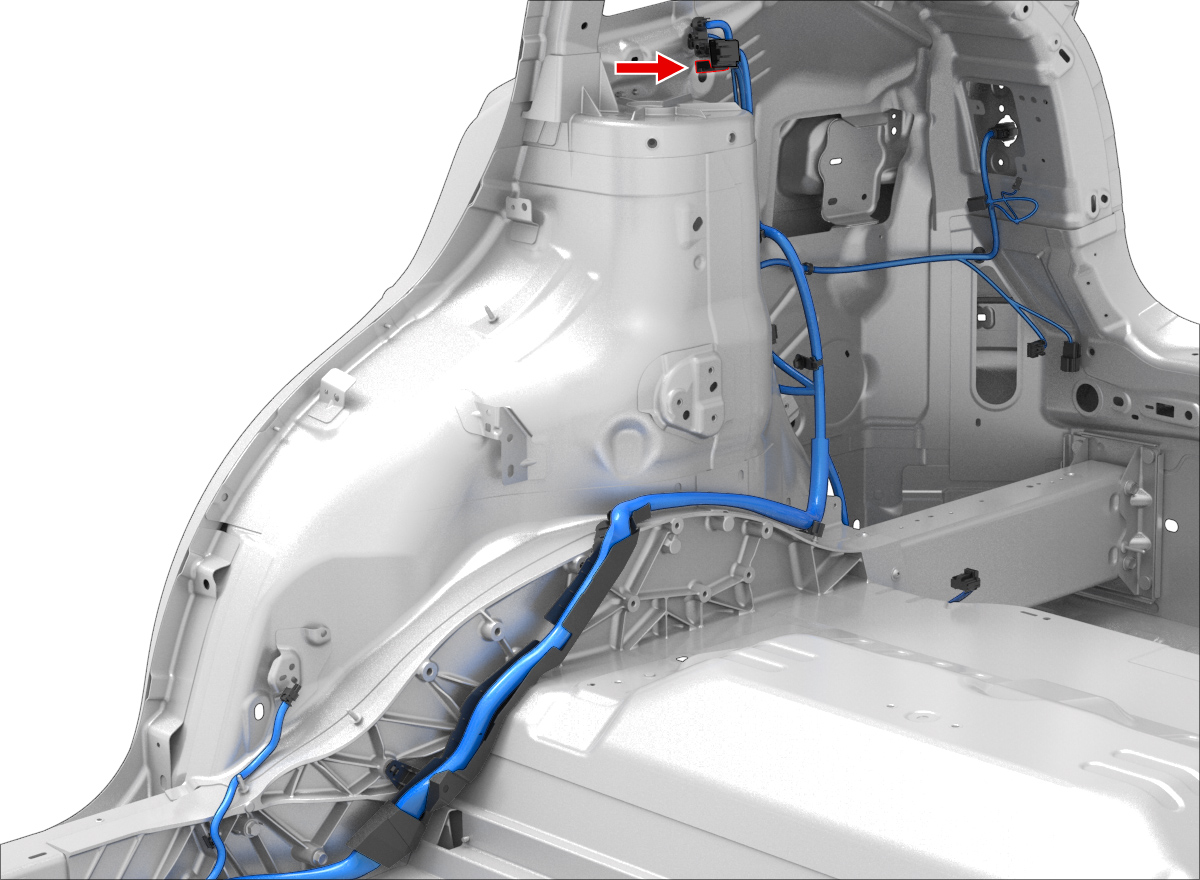

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X050A	1
2	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X052	24
3	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50			X050A	7
4	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X050A	14
5	SUMITOMO	8230-4925	1.5x0.6M	BU	0.35			X050B	10
6	SUMITOMO	8230-4925	1.5x0.6M	RD	0.35			X051	44
7	SUMITOMO	8230-4925	1.5x0.6M	BN	0.35			X052	10
8	SUMITOMO	8230-4542	4.8x0.8M	RD	2.50			X054	3
9	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X050A	2
10	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X060A	35
11	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X050A	13
12	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X051	45
13	SUMITOMO	8230-4925	1.5x0.6M	WH	0.35			X050A	4
14	SUMITOMO	8230-4925	1.5x0.6M	YE	0.50			X050A	26
15	SUMITOMO	8230-4925	1.5x0.6M	TN	0.50			X050A	27
