X958F

Tesla Part Number

1486224-00-A

Connector

DELPHI 33257519

Color

BK

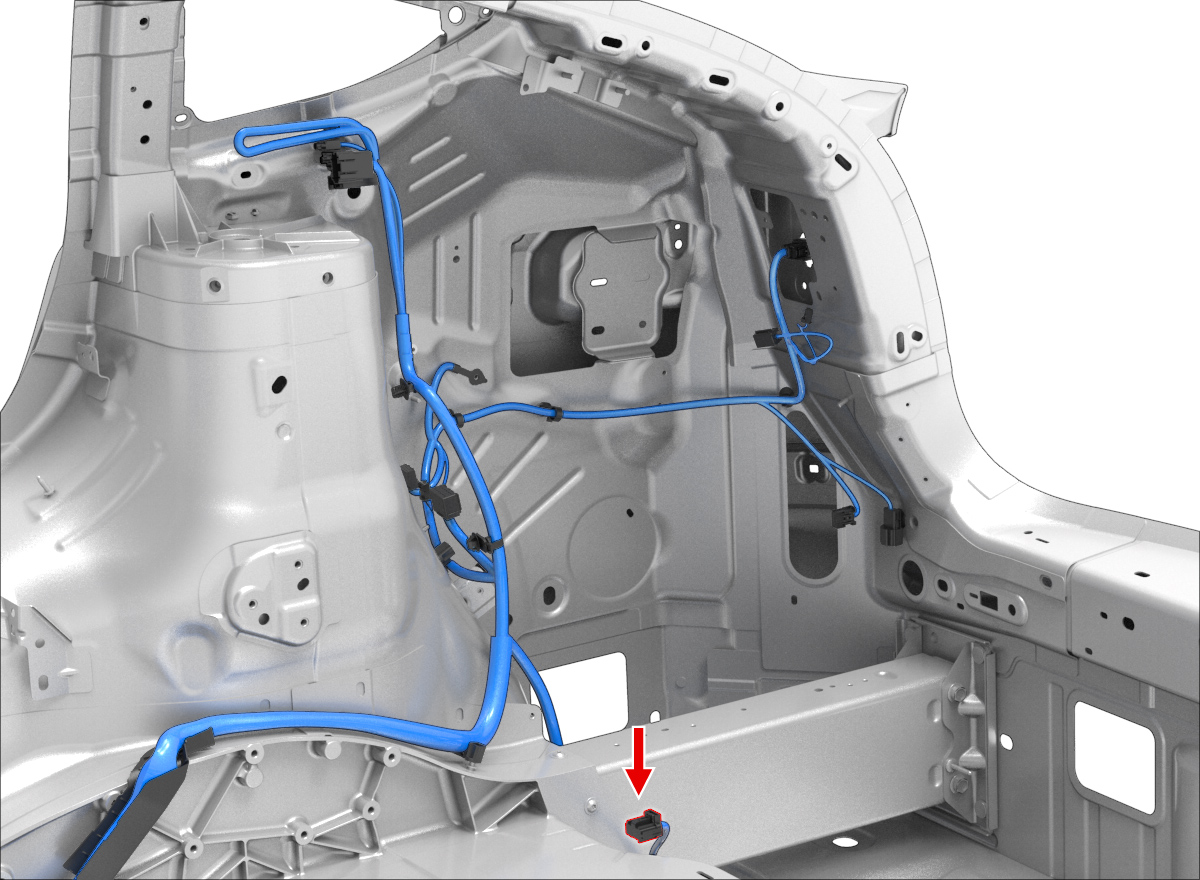

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35072403	1.2x0.6F	GN	0.50			X936F	14
2	DELPHI	35072403	1.2x0.6F	TN	0.50			X936F	6
3	unused
4	DELPHI	35410019	1.2x0.6F	RD	0.35			X936F	10
5	DELPHI	35410019	1.2x0.6F	VT	0.35			X936F	4
6	unused
7	unused
8	DELPHI	35072404	1.2x0.6F	BK	0.75			G390	1
9	DELPHI	35072404	1.2x0.6F	WH	0.75			X936F	9
10	unused
11	unused
12	DELPHI	35410019	1.2x0.6F	YE	0.35			X936F	11
13	DELPHI	35410019	1.2x0.6F	GY	0.35			X936F	12
14	unused
15	DELPHI	35410019	1.2x0.6F	BN	0.35			X936F	13
16	unused
