X958M

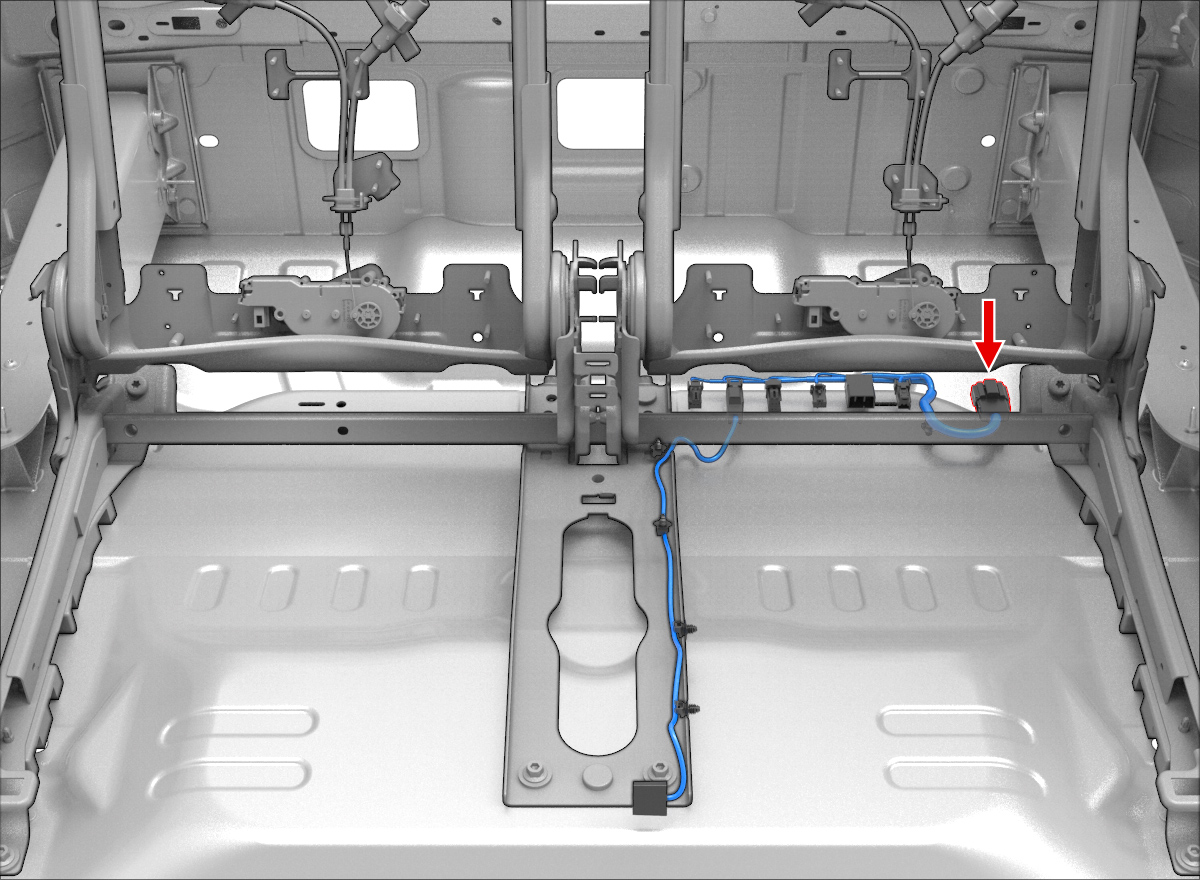

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35091062 | 1.2x0.6M | GN | 0.50 | X968M | 2 | ||
| 2 | DELPHI | 35091062 | 1.2x0.6M | TN | 0.50 | X968M | 1 | ||
| 3 | unused | ||||||||
| 4 | DELPHI | 35412744 | 1.2x0.6M | RD | 0.35 | X968M | 4 | ||
| 5 | DELPHI | 35412744 | 1.2x0.6M | VT | 0.35 | X3004 | 3 | ||
| 6 | unused | ||||||||
| 7 | unused | ||||||||
| 8 | DELPHI | 35091061 | 1.2x0.6M | BK | 0.75 | ||||
| 9 | DELPHI | 35091061 | 1.2x0.6M | WH | 0.75 | ||||
| 10 | unused | ||||||||
| 11 | unused | ||||||||
| 12 | DELPHI | 35412744 | 1.2x0.6M | YE | 0.35 | X3003 | 1 | ||
| 13 | DELPHI | 35412744 | 1.2x0.6M | GY | 0.35 | X3005 | 1 | ||
| 14 | unused | ||||||||
| 15 | DELPHI | 35091061 | 1.2x0.6M | BN | 0.75 | ||||
| 16 | unused | ||||||||
