X959M

Tesla Part Number

1486225-00-A

Connector

DELPHI 33257537

Color

BK

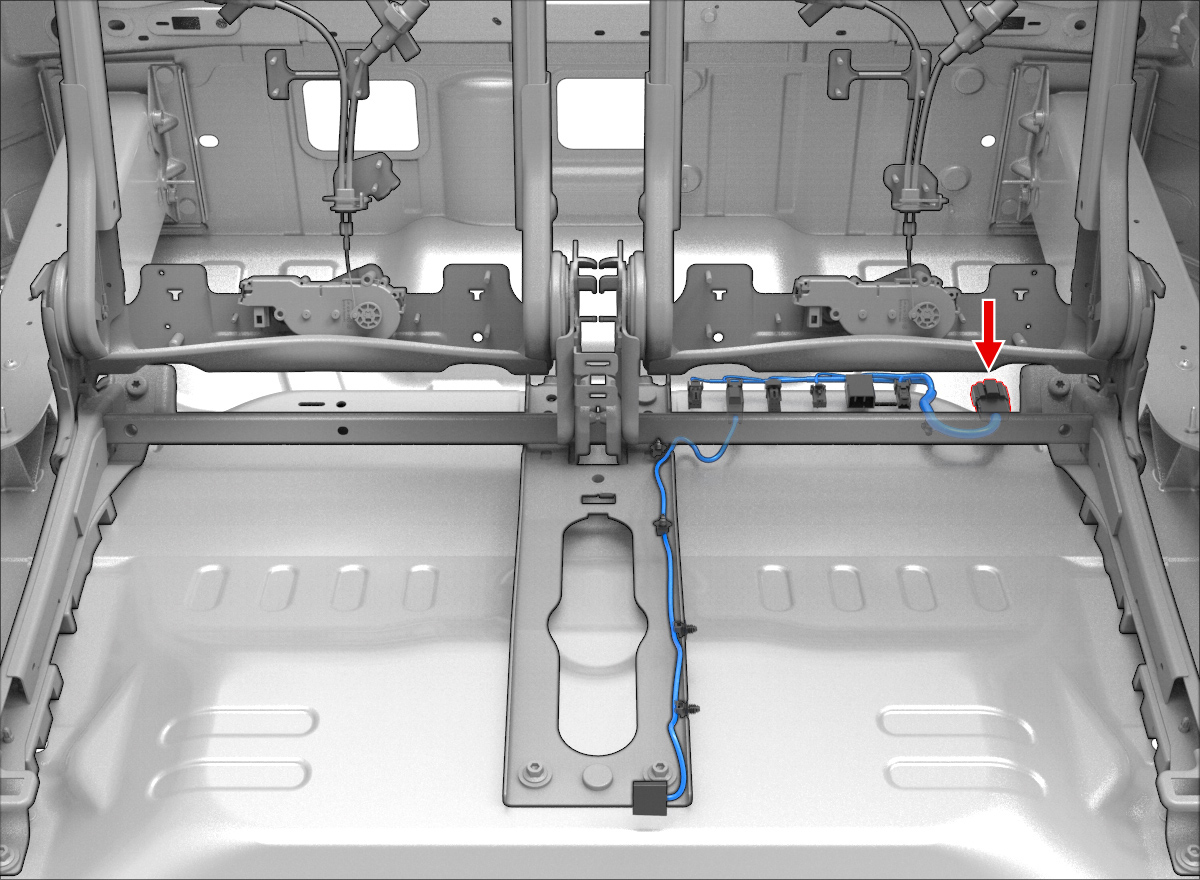

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35091062	1.2x0.6M	GN	0.50			X969M	3
2	DELPHI	35091062	1.2x0.6M	TN	0.50			X969M	1
3	unused
4	DELPHI	35412744	1.2x0.6M	RD	0.35			X969M	5
5	DELPHI	35412744	1.2x0.6M	VT	0.35			X3004	3
