X963F

Tesla Part Number

1055819-00-A

Connector

MOLEX 33472-1206

Color

BK

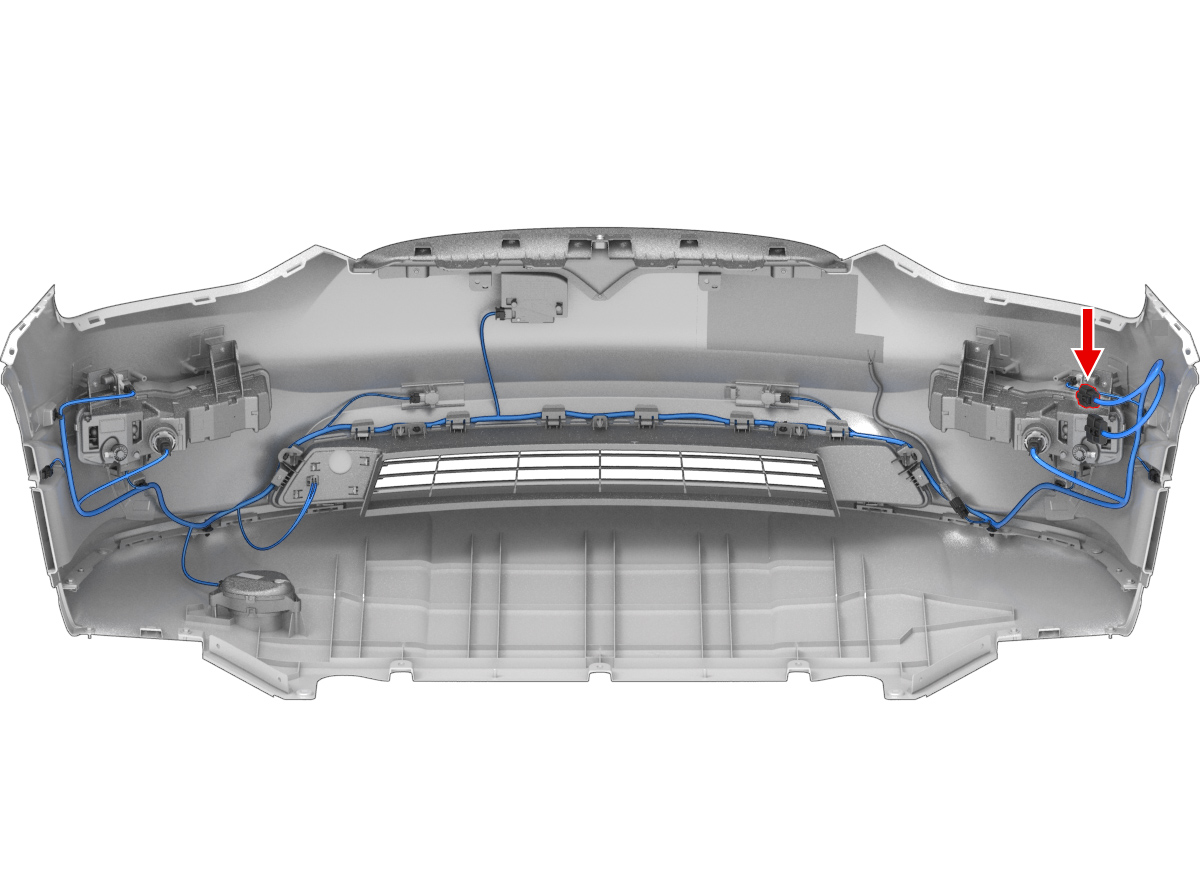

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3004	1.5x0.8F	GN	0.50	TESLA	MAT-120-240	X262	1
2	MOLEX	33012-3004	1.5x0.8F	BN	0.35	TESLA	MAT-120-240	X262	2
3	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X262	4
4	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X495	4
5	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X244	1
6	MOLEX	33012-3004	1.5x0.8F	BK	0.35	TESLA	MAT-120-240	X244	2
7	unused
8	unused
9	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X495	2
10	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X495	1
11	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X245	2
12	MOLEX	33012-3004	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X245	1
