X964F

Tesla Part Number

1015287-10-A

Connector

MOLEX 33472-2006

Color

BK

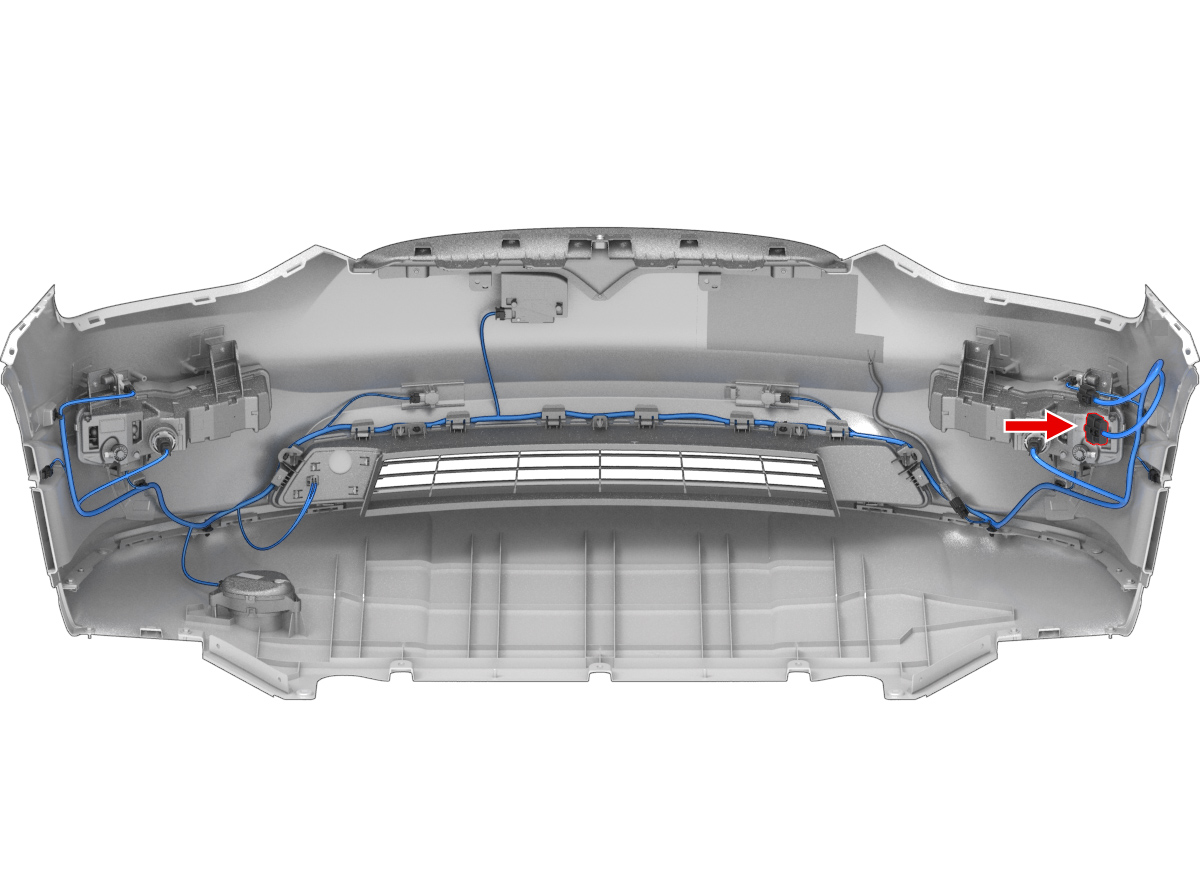

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3002	1.5x0.8F	BN	1.00	TESLA	MAT-120-240	X128	1
2	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X263	4
3	MOLEX	33012-3004	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X263	2
4	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X133	2
5	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X134	2
6	MOLEX	33012-3004	1.5x0.8F	BU	0.50	TESLA	MAT-120-240	X597	1
7	MOLEX	33012-3004	1.5x0.8F	WH	0.50	TESLA	MAT-120-240	X597	2
8	MOLEX	33012-3001	1.5x0.8F	BK	1.50	TESLA	MAT-120-240
9	MOLEX	33012-3002	1.5x0.8F	RD	1.00	TESLA	MAT-120-240	X555	1
10	MOLEX	33012-3004	1.5x0.8F	VT	0.50	TESLA	MAT-120-240	X263	1
11	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240
12	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X140	2
13	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X141	2
14	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X142	2
15	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X143	2
16	MOLEX	33012-3004	1.5x0.8F	BN	0.35	TESLA	MAT-120-240
17	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X263	3
18	MOLEX	33012-3004	1.5x0.8F	TN	0.35	TESLA	MAT-120-240	X262	3
19	unused
20	unused
