X965M

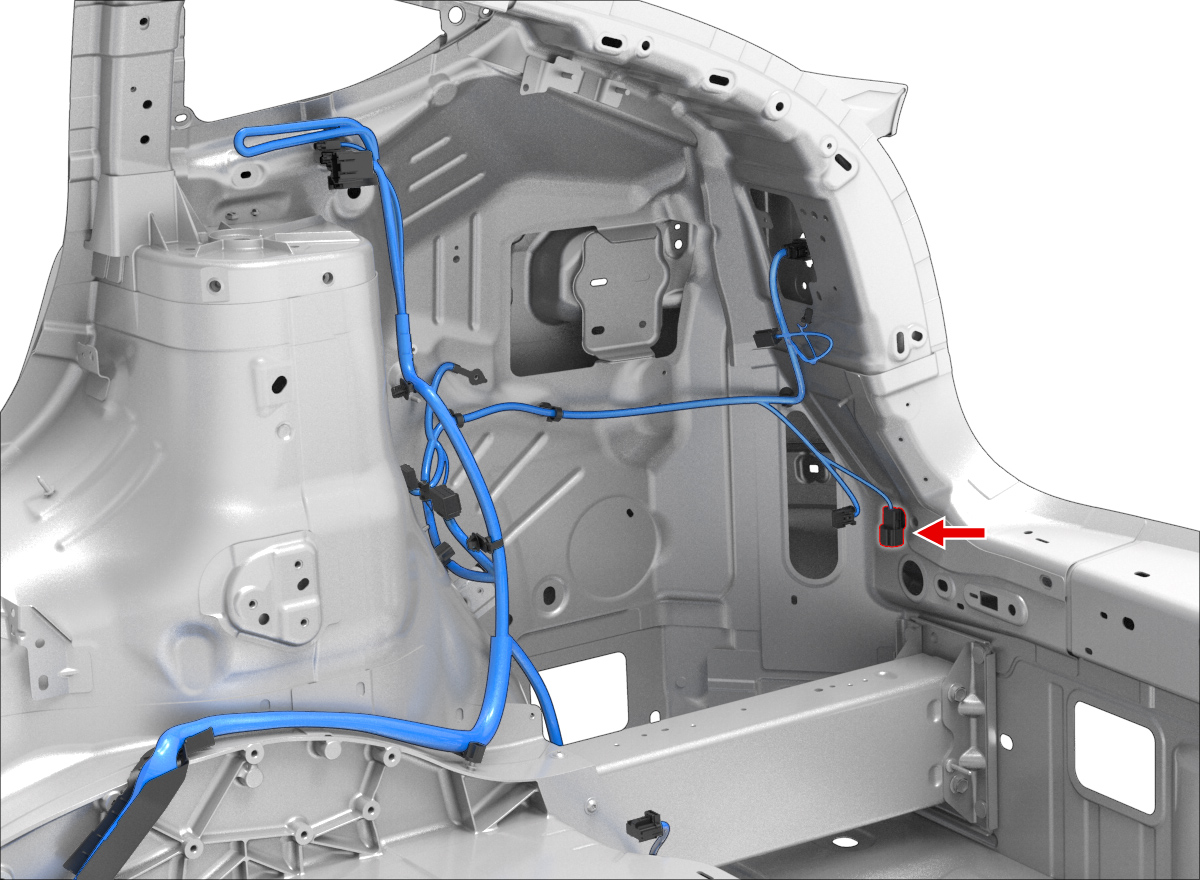

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35412744 | 1.2x0.6M | RD | 0.35 | X993M | 15 | ||
| 2 | DELPHI | 35412744 | 1.2x0.6M | WH | 0.35 | X993M | 14 | ||
| 3 | unused | ||||||||
| 4 | unused | ||||||||
| 5 | unused | ||||||||
| 6 | unused | ||||||||
