X966M

Tesla Part Number

1051431-00-A

Connector

MOLEX 34986-1602

Color

GY

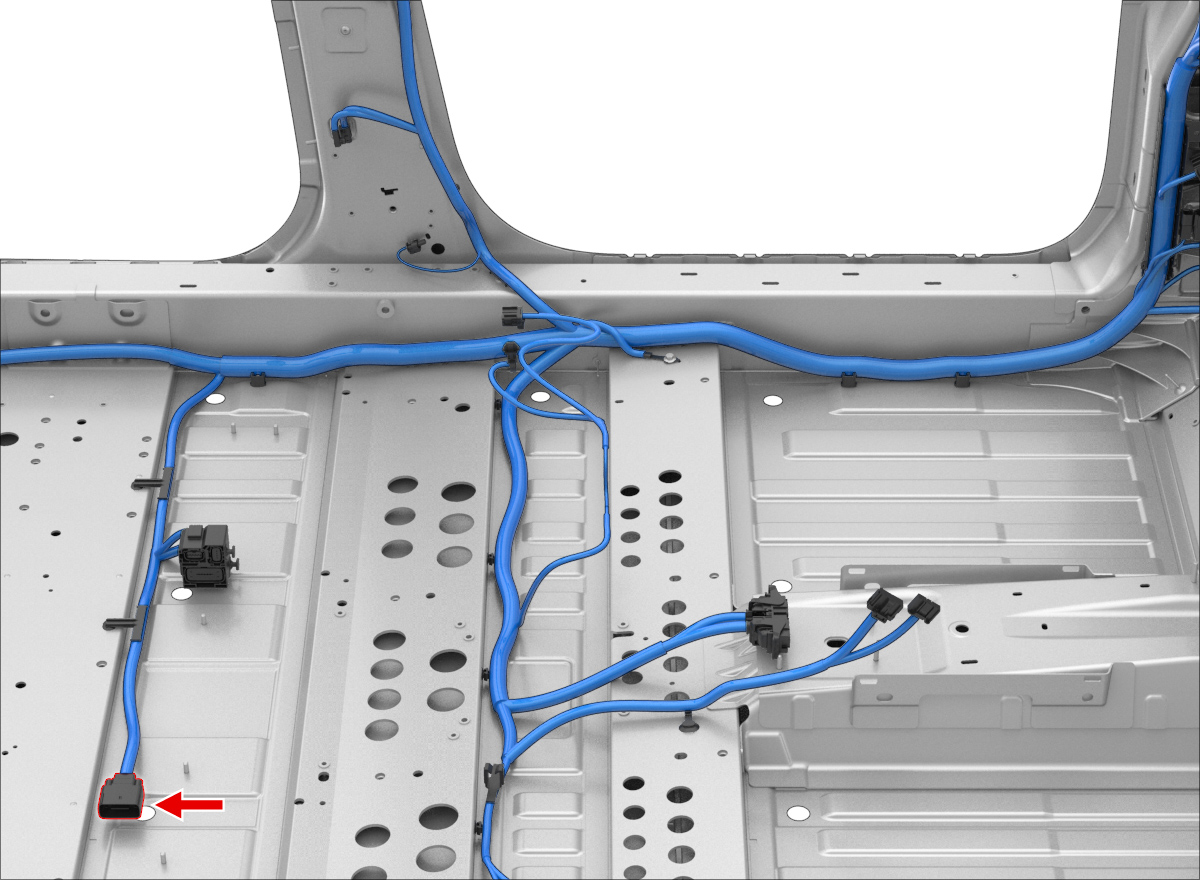

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1326031-5	2.8x0.8MS	RD	2.00	YAZAKI	7158-3113-40	X031	2
2	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X992M	2
3	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X992M	4
4	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X201	19
5	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X201	20
6	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X201	51
7	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X201	52
8	unused
9	AMP	1326031-5	2.8x0.8MS	BN	2.00	YAZAKI	7158-3113-40	X031	16
10	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X992M	3
11	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X992M	12
12	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X201	26
13	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X201	25
14	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X201	9
15	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X201	10
16	AMP	1326031-5	2.8x0.8MS	BK	2.00	YAZAKI	7158-3113-40	G250	1
