X967M

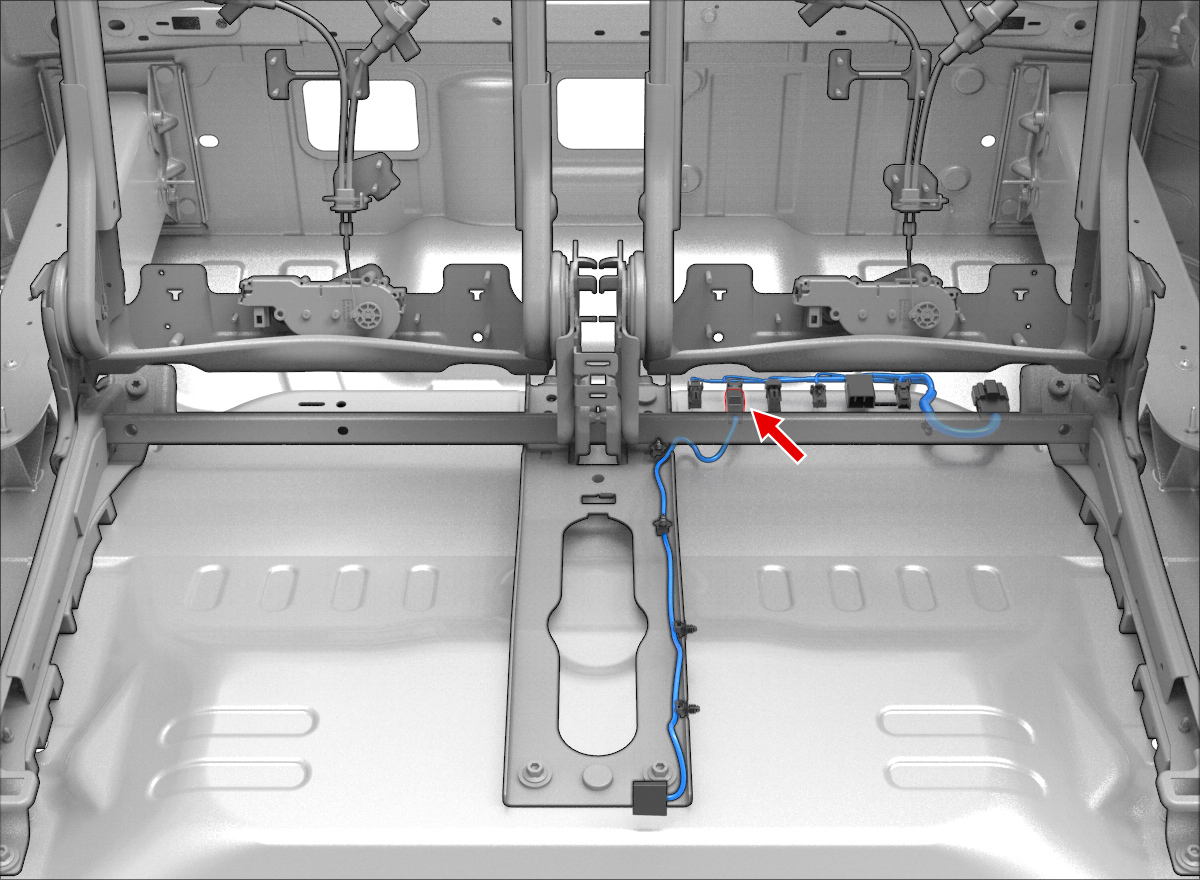

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7114-4101-02 | 1.5x0.8M | RD | 0.75 | X3030 | D | ||
| 2 | YAZAKI | 7114-4101-02 | 1.5x0.8M | BK | 0.75 | X3030 | A |
