X969M

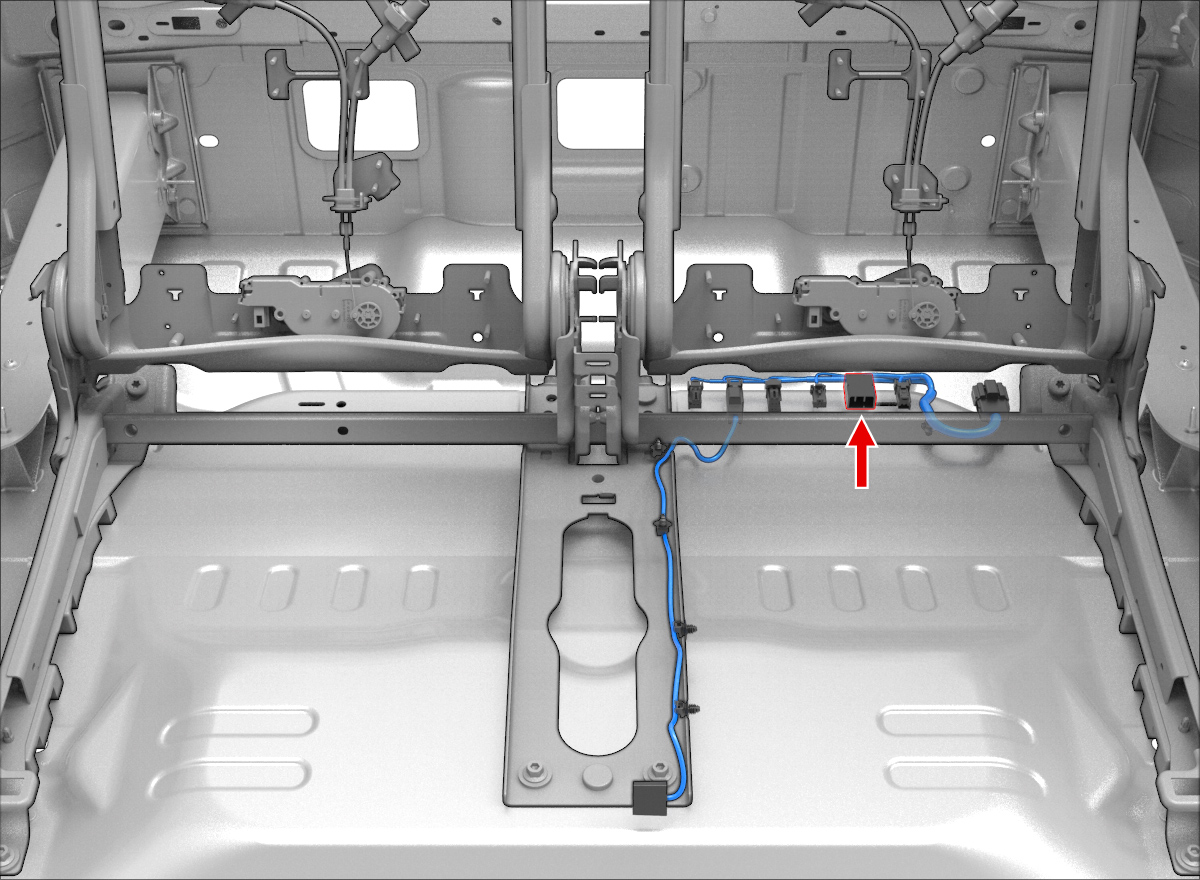

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 173633-2 | 1.8x0.64M | TN | 0.50 | X959M | 2 | ||
| 2 | unused | ||||||||
| 3 | AMP | 173633-2 | 1.8x0.64M | GN | 0.50 | X959M | 1 | ||
| 4 | unused | ||||||||
| 5 | AMP | 173633-2 | 1.8x0.64M | RD | 0.35 | X959M | 4 | ||
| 6 | AMP | 173633-2 | 1.8x0.64M | BN | 0.35 | ||||
| 7 | unused | ||||||||
| 8 | AMP | 173645-2 | 1.8x0.64M | BK | 0.75 | ||||
