X970M

Tesla Part Number

1486227-00-A

Connector

DELPHI 33239518

Color

BK

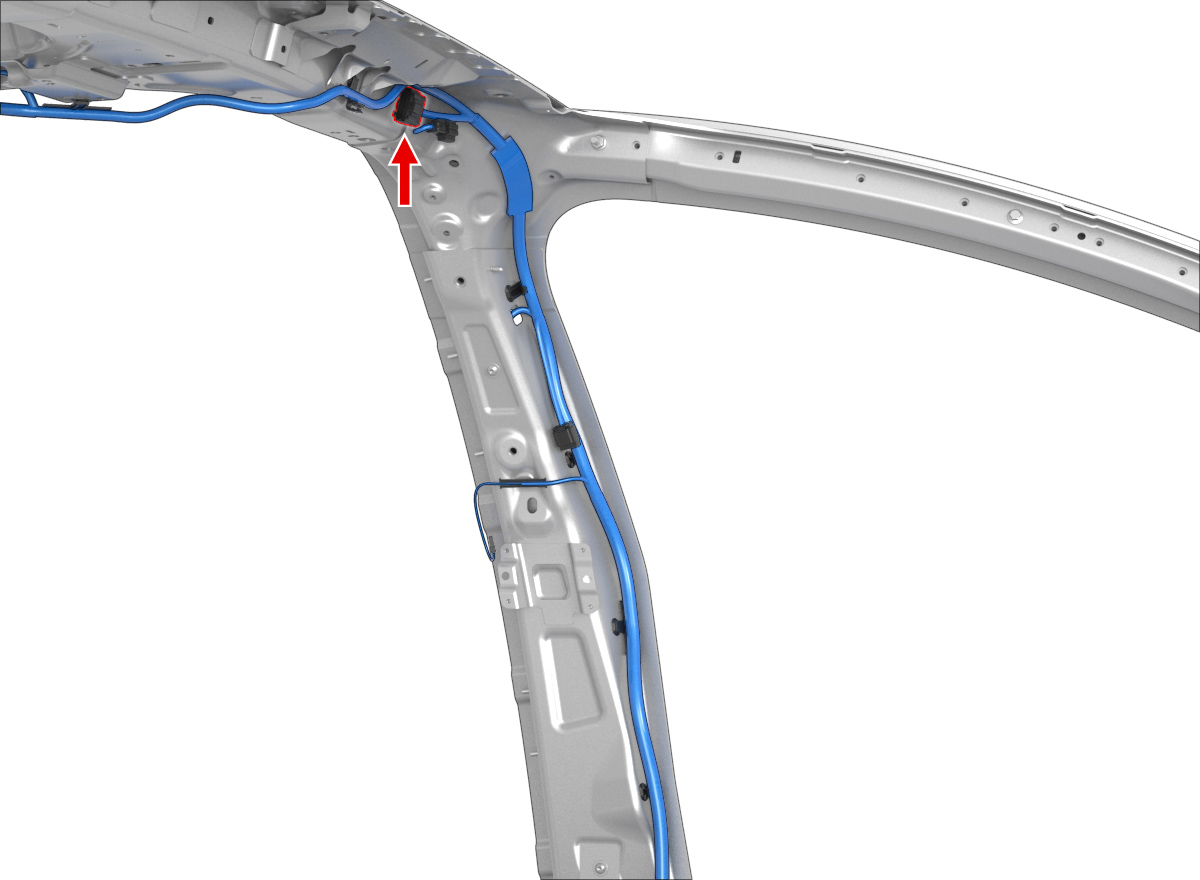

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35091060	1.2x0.6M	RD	1.50			X030A	31
2	DELPHI	35091062	1.2x0.6M	GY	0.50			X038A	17
3	DELPHI	35412744	1.2x0.6M	GN	0.35			X032	13
4	DELPHI	35412744	1.2x0.6M	VT/WH	0.35			X791	3
5	DELPHI	35412744	1.2x0.6M	VT	0.35			X791	9
6	DELPHI	35091061	1.2x0.6M	BN	0.75			X031	5
7	DELPHI	35412744	1.2x0.6M	RD	0.35			X684	12
8	DELPHI	35412744	1.2x0.6M	GN	0.35			X684	13
9	DELPHI	35412744	1.2x0.6M	YE	0.35			X201	23
10	DELPHI	35091060	1.2x0.6M	BU	1.50			X034	1
11	DELPHI	35091060	1.2x0.6M	TN	1.50			X030A	30
12	DELPHI	35412744	1.2x0.6M	YE	0.35			X031	34
13	DELPHI	35412744	1.2x0.6M	RD	0.35			X038A	27
14	DELPHI	35412744	1.2x0.6M	GY	0.35			X038A	13
15	DELPHI	35412744	1.2x0.6M	BU	0.35			X031	36
16	DELPHI	35412744	1.2x0.6M	GN	0.35			X031	35
17	DELPHI	35412744	1.2x0.6M	GY/WH	0.35			X791	6
18	DELPHI	35412744	1.2x0.6M	GY	0.35			X791	12
19	DELPHI	35412744	1.2x0.6M	RD	0.35			X201	24
20	DELPHI	35091060	1.2x0.6M	BK	1.50			G250	1
