X971F

Tesla Part Number

1486224-00-A

Connector

DELPHI 33257519

Color

BK

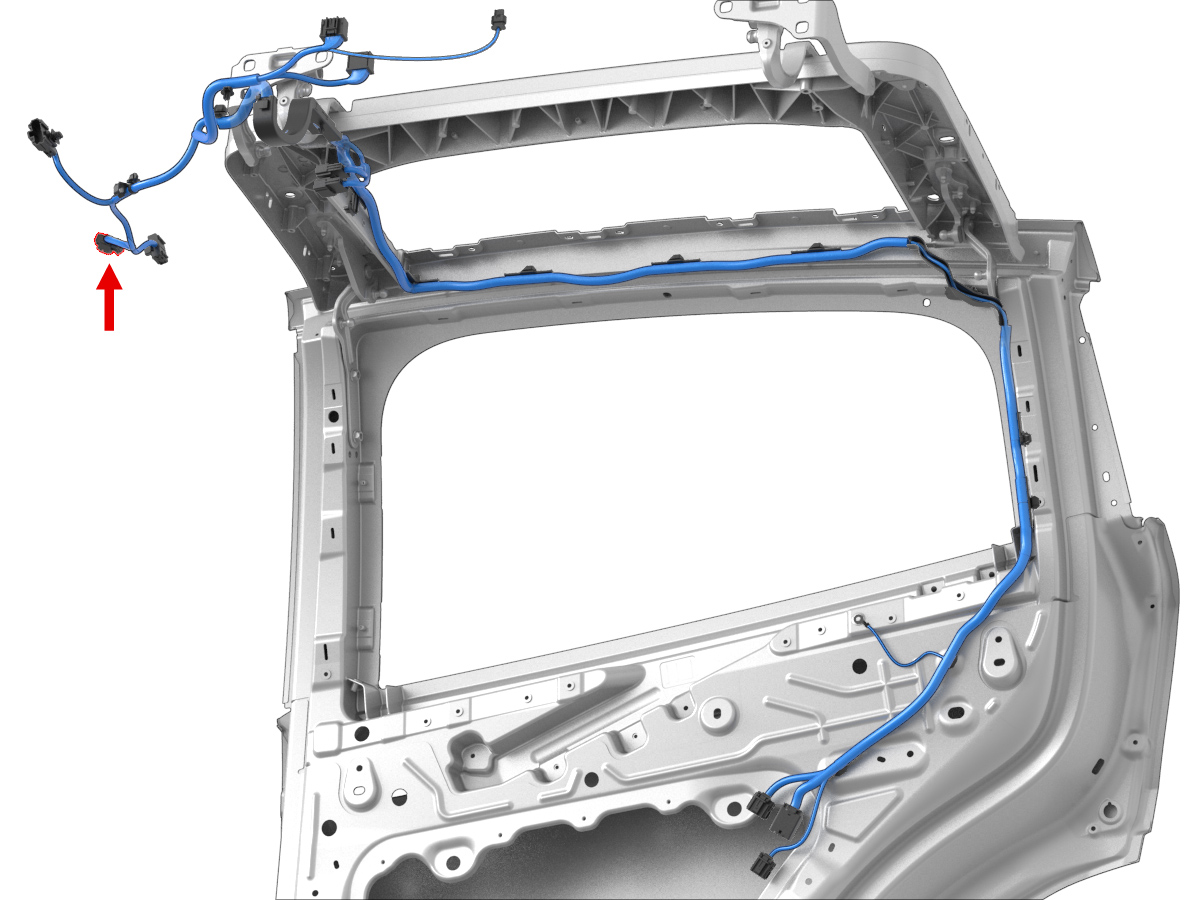

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35072406	1.2x0.6F	GN	1.50			X987F	1
2	unused
3	unused
4	unused
5	unused
6	unused
7	unused
8	DELPHI	35072406	1.2x0.6F	BU	1.50			X975F	16
9	DELPHI	35072406	1.2x0.6F	TN	1.50			X987F	7
10	DELPHI	35072404	1.2x0.6F	GY	0.75			X975F	6
11	DELPHI	35410019	1.2x0.6F	GN	0.35			X975F	7
12	DELPHI	35410019	1.2x0.6F	BU/WH	0.35			X985F	18
13	DELPHI	35410019	1.2x0.6F	BU	0.35			X985F	19
14	unused
15	DELPHI	35072404	1.2x0.6F	BN	0.75			X987F	5
16	DELPHI	35072406	1.2x0.6F	BK	1.50			G650	1
