X971M

Tesla Part Number

1486225-00-A

Connector

DELPHI 33257537

Color

BK

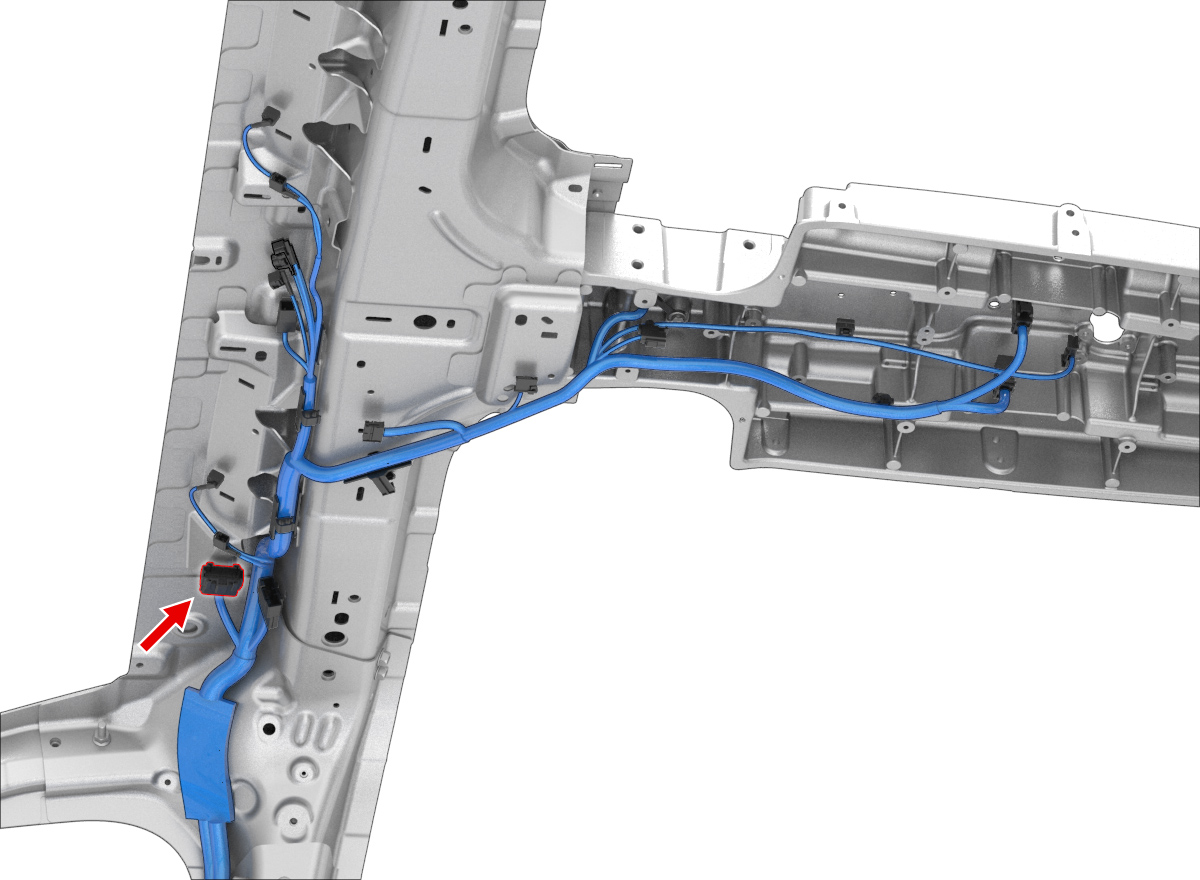

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35091060	1.2x0.6M	GN	1.50			X050B	7
2	unused
3	unused
4	unused
5	unused
6	unused
7	unused
8	DELPHI	35091060	1.2x0.6M	BU	1.50			X054	6
9	DELPHI	35091060	1.2x0.6M	TN	1.50			X050B	9
10	DELPHI	35091062	1.2x0.6M	GY	0.50			X060A	13
11	DELPHI	35412744	1.2x0.6M	GN	0.35			X052	28
12	DELPHI	35412744	1.2x0.6M	BU/WH	0.35			X792	2
13	DELPHI	35412744	1.2x0.6M	BU	0.35			X792	13
14	unused
15	DELPHI	35091062	1.2x0.6M	BN	0.50			X052	27
16	DELPHI	35091060	1.2x0.6M	BK	1.50			G350	1
