X972U

Tesla Part Number

1042583-01-A

Connector

SUMITOMO 6098-3926

Color

BK

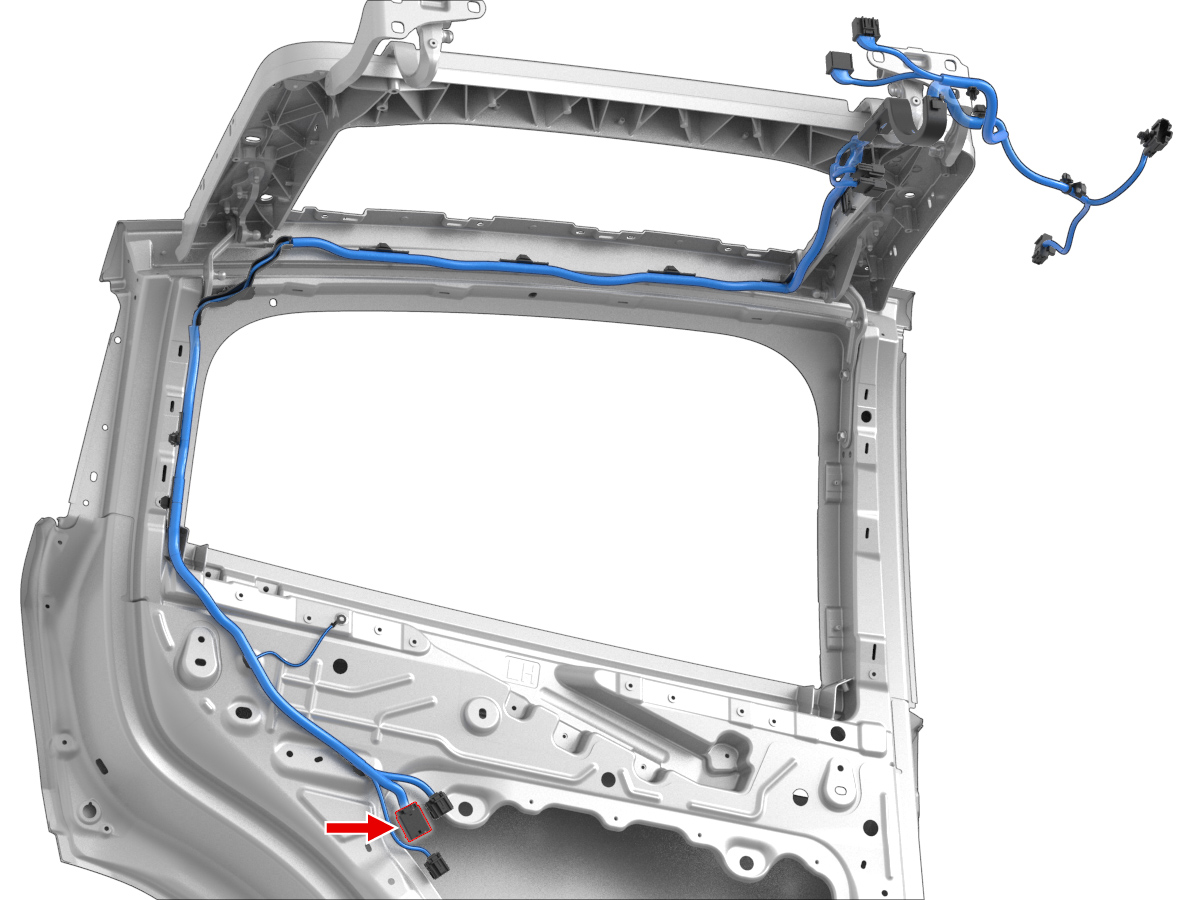

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X970F	8
2	unused
3	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X970F	7
4	unused
5	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X970F	17
6	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X985M	7
7	unused
8	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X970F	4
9	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X985M	9
10	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X970F	5
11	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X985M	10
12	unused
13	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X985M	15
14	unused
15	unused
16	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X970F	18
17	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X985M	8
18	unused
19	unused
20	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X985M	5
21	unused
22	unused
