X973M

Tesla Part Number

1486225-00-A

Connector

DELPHI 33257537

Color

BK

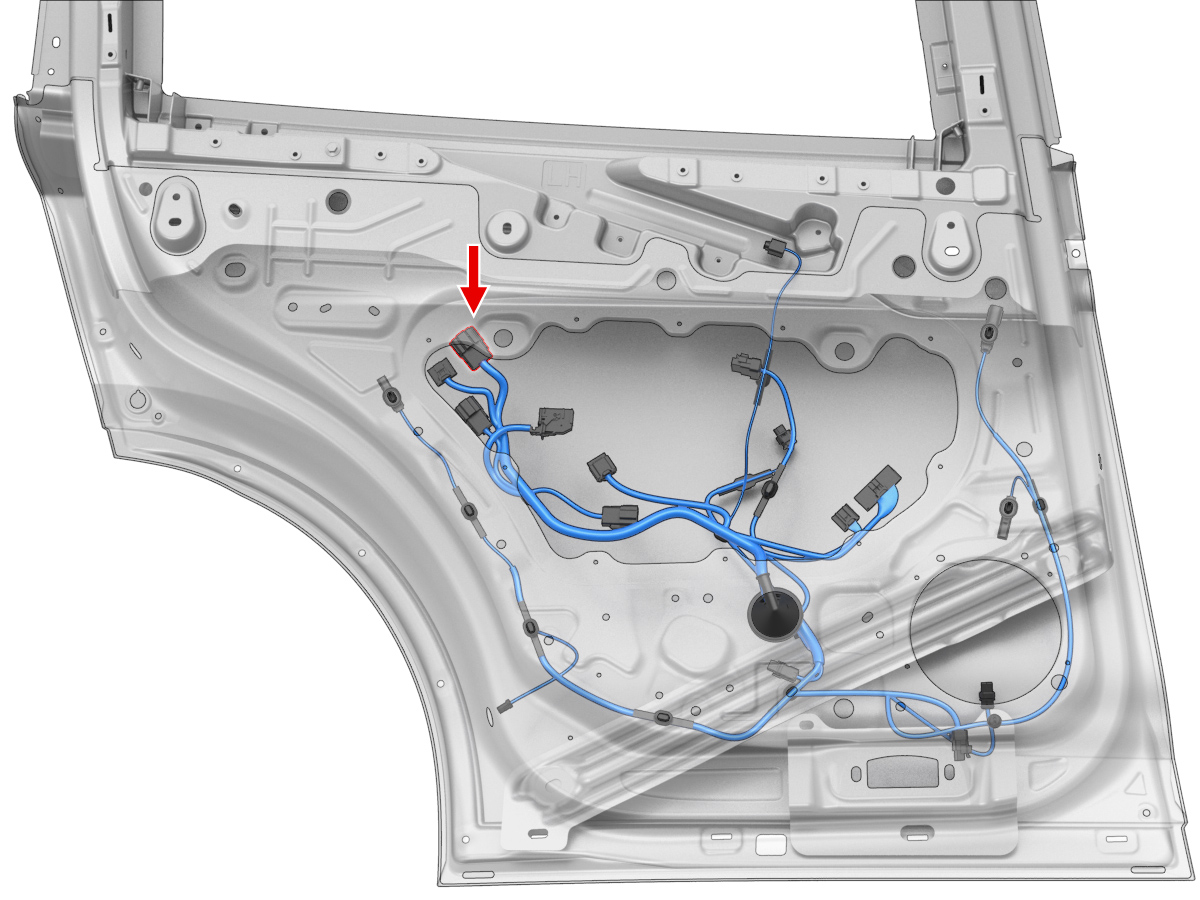

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35091060	1.2x0.6M	BU	1.50			X781	1
2	DELPHI	35412744	1.2x0.6M	BK	0.35			X421	11
3	DELPHI	35412744	1.2x0.6M	GY	0.35			X421	10
4	DELPHI	35412744	1.2x0.6M	YE	0.35			X241	1
5	DELPHI	35412744	1.2x0.6M	RD	0.35			X241	2
6	DELPHI	35091061	1.2x0.6M	GY	0.75			X976M	8
7	DELPHI	35412744	1.2x0.6M	GN	0.35			X976M	9
8	DELPHI	35091060	1.2x0.6M	BK	1.50			X781	10
9	DELPHI	35091060	1.2x0.6M	WH	1.50			X781	4
10	DELPHI	35412744	1.2x0.6M	BU/WH	0.35			X447	11
11	DELPHI	35412744	1.2x0.6M	BU	0.35			X447	10
12	DELPHI	35412744	1.2x0.6M	VT	0.35			X447	7
13	DELPHI	35412744	1.2x0.6M	GN	0.35			X447	8
14	DELPHI	35412744	1.2x0.6M	TN	0.35			X447	20
15	unused
16	DELPHI	35091060	1.2x0.6M	BU	1.50			X423	1
