X974U

Tesla Part Number

1042583-01-A

Connector

SUMITOMO 6098-3926

Color

BK

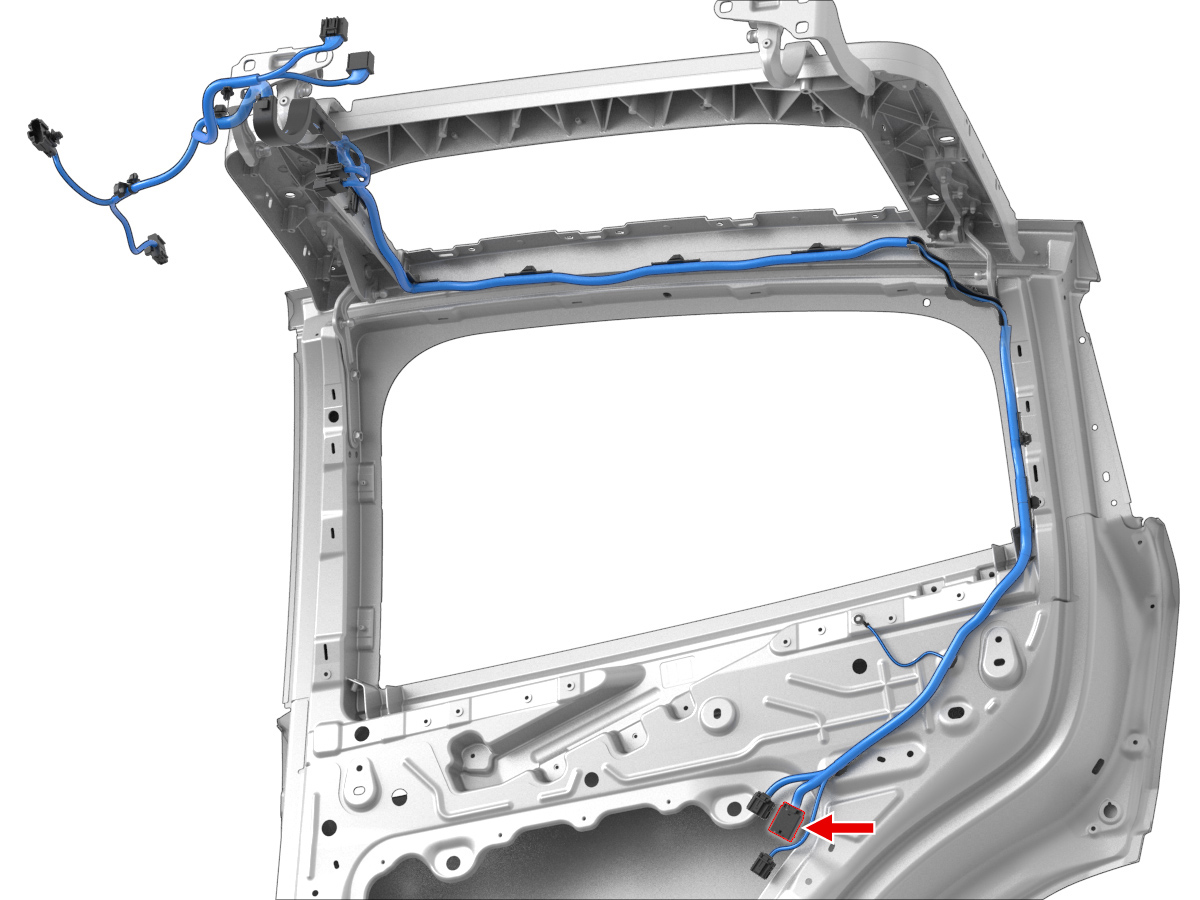

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X978F	8
2	unused
3	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X978F	7
4	unused
5	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X978F	18
6	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X985F	7
7	unused
8	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X978F	3
9	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X985F	9
10	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X978F	4
11	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X985F	10
12	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X985F	15
13	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X482	3
14	unused
15	unused
16	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X978F	19
17	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X985F	8
18	unused
19	unused
20	unused
21	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X985F	5
22	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X482	1
