X975F

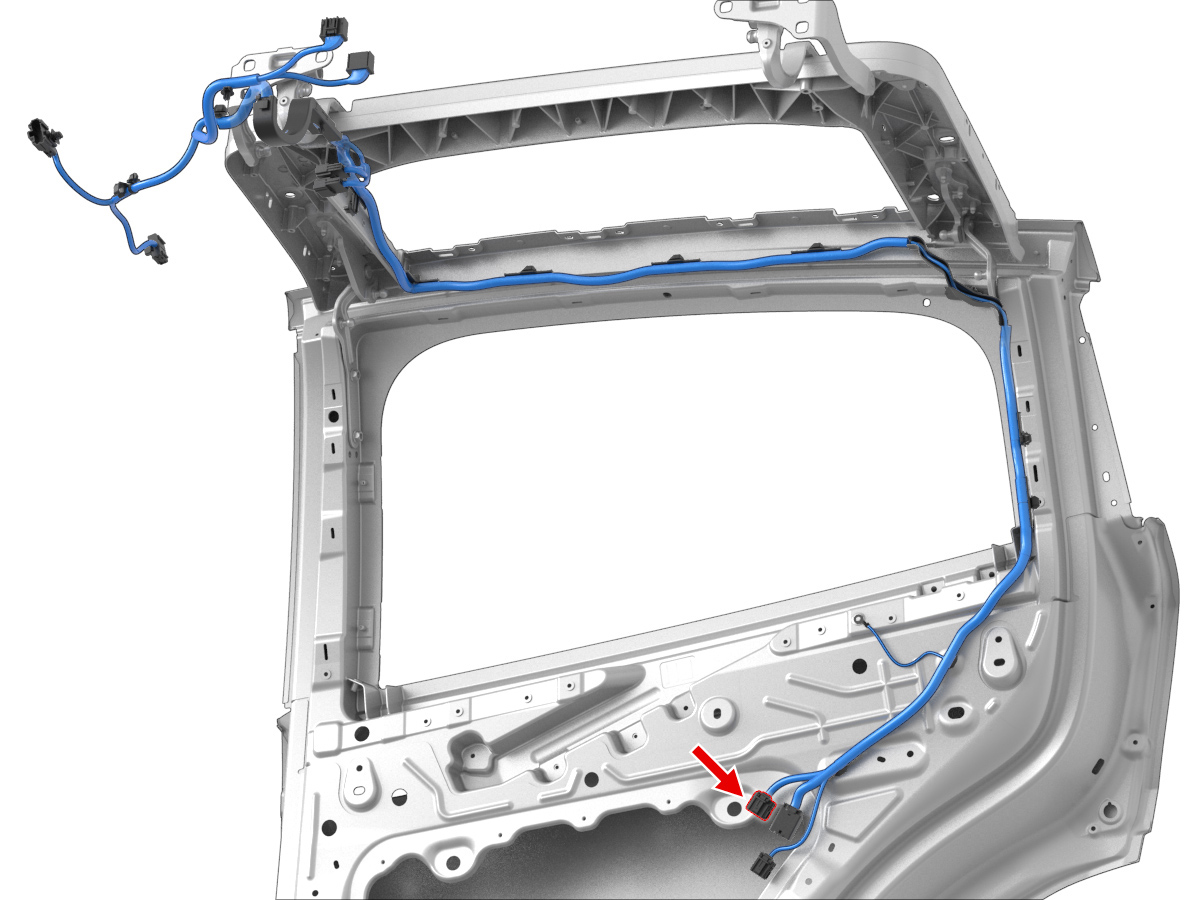

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35072406 | 1.2x0.6F | BU | 1.50 | X978F | 1 | ||
| 2 | DELPHI | 35410019 | 1.2x0.6F | GY | 0.35 | ||||
| 3 | DELPHI | 35410019 | 1.2x0.6F | BK | 0.35 | ||||
| 4 | DELPHI | 35410019 | 1.2x0.6F | YE | 0.35 | X978F | 9 | ||
| 5 | DELPHI | 35410019 | 1.2x0.6F | GN | 0.35 | X978F | 10 | ||
| 6 | DELPHI | 35072404 | 1.2x0.6F | GY | 0.75 | X971F | 10 | ||
| 7 | DELPHI | 35410019 | 1.2x0.6F | GN | 0.35 | X971F | 11 | ||
| 8 | DELPHI | 35072406 | 1.2x0.6F | BK | 1.50 | G650 | 1 | ||
| 9 | DELPHI | 35072406 | 1.2x0.6F | WH | 1.50 | X978F | 12 | ||
| 10 | unused | ||||||||
| 11 | DELPHI | 35410019 | 1.2x0.6F | GN | 0.35 | X985F | 14 | ||
| 12 | DELPHI | 35410019 | 1.2x0.6F | VT | 0.35 | X985F | 16 | ||
| 13 | unused | ||||||||
| 14 | unused | ||||||||
| 15 | unused | ||||||||
| 16 | DELPHI | 35072406 | 1.2x0.6F | BU | 1.50 | X971F | 8 | ||
