X975M

Tesla Part Number

1486225-00-A

Connector

DELPHI 33257537

Color

BK

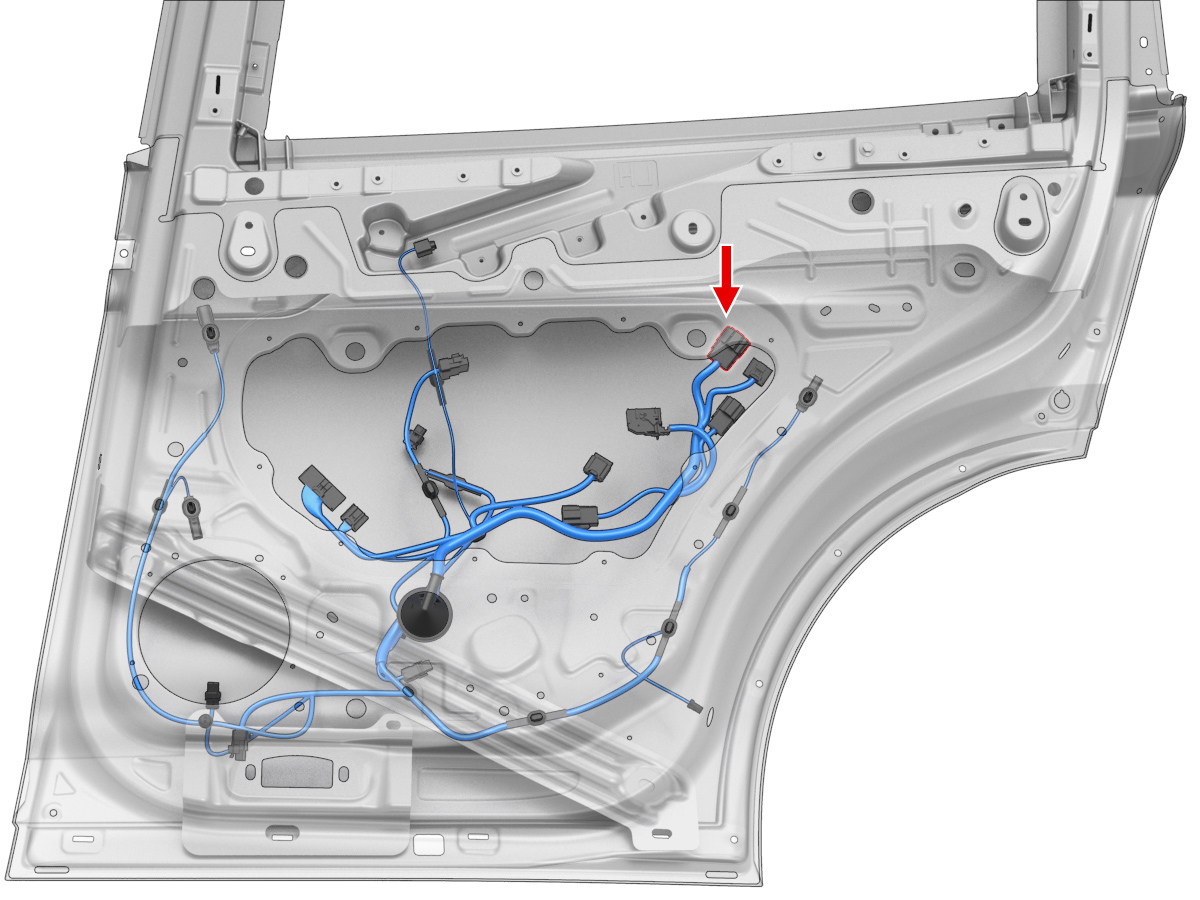

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35091060	1.2x0.6M	BU	1.50			X784	1
2	DELPHI	35412744	1.2x0.6M	GY	0.35			X451	11
3	DELPHI	35412744	1.2x0.6M	BK	0.35			X451	10
4	DELPHI	35412744	1.2x0.6M	YE	0.35			X242	1
5	DELPHI	35412744	1.2x0.6M	GN	0.35			X242	2
6	DELPHI	35091061	1.2x0.6M	GY	0.75			X977M	8
7	DELPHI	35412744	1.2x0.6M	GN	0.35			X977M	9
8	DELPHI	35091060	1.2x0.6M	BK	1.50			X784	10
9	DELPHI	35091060	1.2x0.6M	WH	1.50			X784	4
10	unused
11	DELPHI	35412744	1.2x0.6M	GN	0.35			X451	26
12	DELPHI	35412744	1.2x0.6M	VT	0.35
13	unused
14	unused
15	unused
