X978F

Tesla Part Number

1042621-00-A

Connector

SUMITOMO 6098-5622

Color

WH

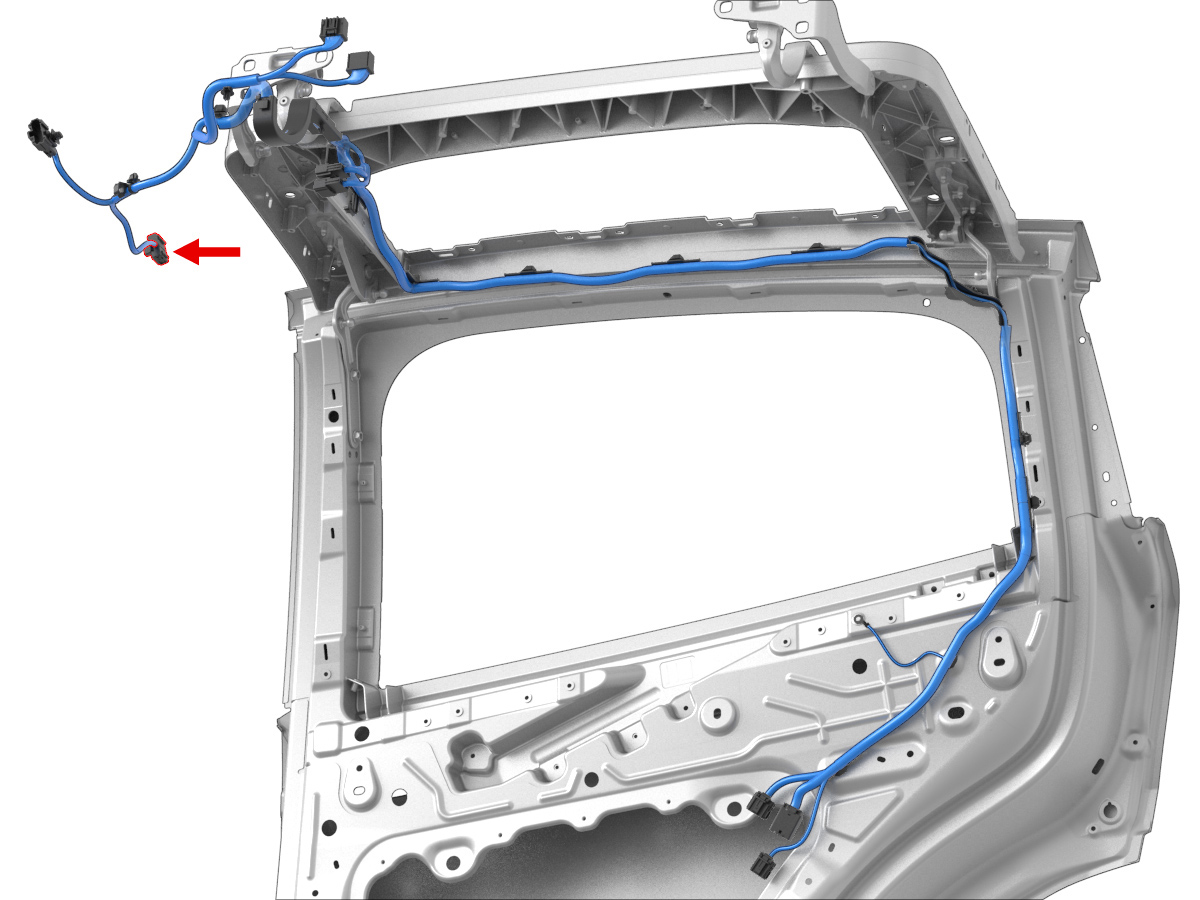

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	BU	1.50			X975F	1
2	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35
3	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X974U	8
4	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X974U	10
5	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X987F	4
6	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X987F	9
7	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X974U	3
8	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X974U	1
9	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X975F	4
10	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X975F	5
11	SUMITOMO	8240-0214	1.5x0.64F	BU	1.50			X985F	1
12	SUMITOMO	8240-0214	1.5x0.64F	WH	1.50			X975F	9
13	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X987F	6
14	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X987F	3
15	unused
16	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X987F	10
17	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35
18	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X974U	5
19	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X974U	16
20	SUMITOMO	8240-0214	1.5x0.64F	WH	1.50			X985F	11
