X978M

Tesla Part Number

1042620-00-A

Connector

SUMITOMO 6098-5613

Color

WH

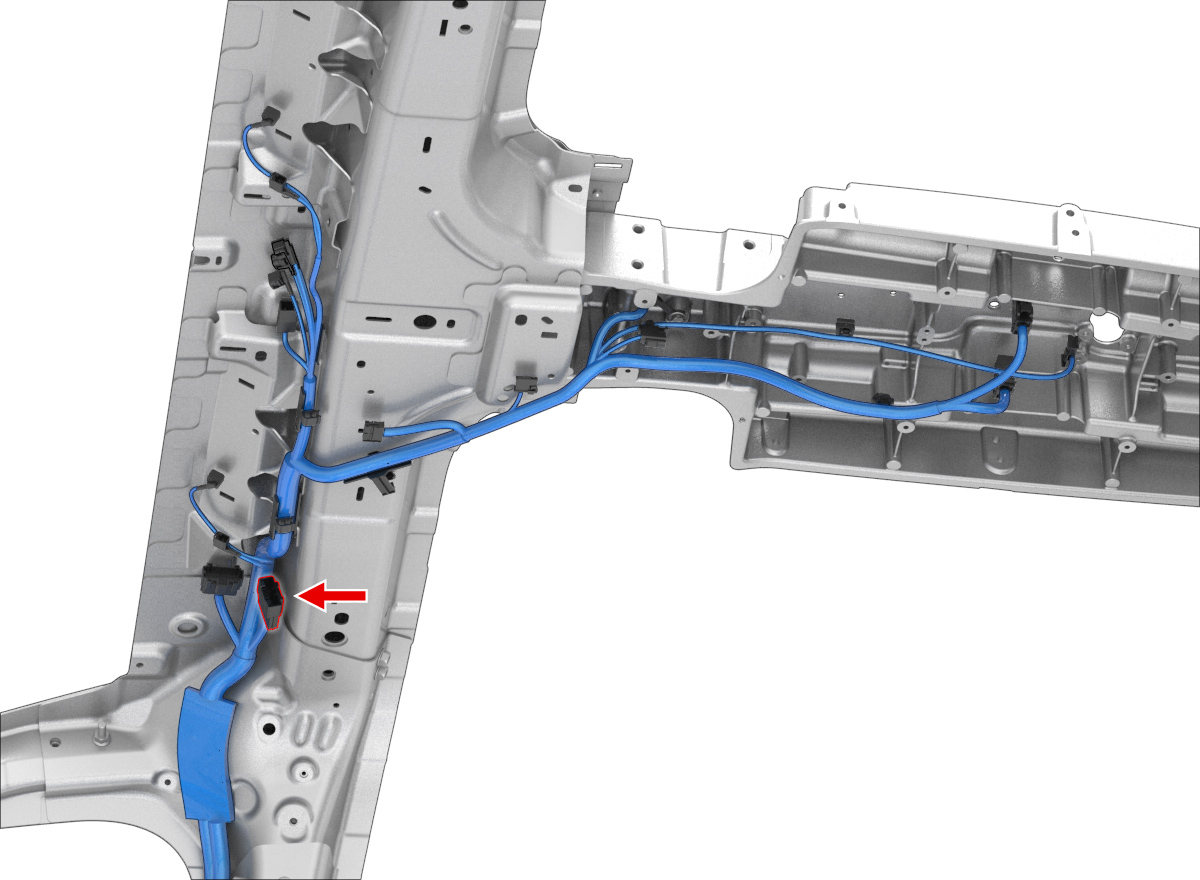

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	BU/YE	2.00			X570	3
2	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			G350	1
3	SUMITOMO	8100-3623	0.64x0.64M	VT/WH	0.35			X792	6
4	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X792	17
5	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X060A	27
6	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X052	35
7	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X685	12
8	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X685	13
9	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X997F	16
10	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X997F	17
11	SUMITOMO	8230-4923	1.5x0.6M	BU	2.00			X570	2
12	SUMITOMO	8230-4923	1.5x0.6M	WH/YE	2.00			X570	4
13	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X052	34
14	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X060A	12
15	unused
16	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X052	36
17	unused
18	SUMITOMO	8100-3623	0.64x0.64M	GY/WH	0.35			X792	10
19	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X792	21
20	SUMITOMO	8230-4923	1.5x0.6M	WH	2.00			X570	1
