X980F

Tesla Part Number

1042578-00-A

Connector

SUMITOMO 6098-3909

Color

WH

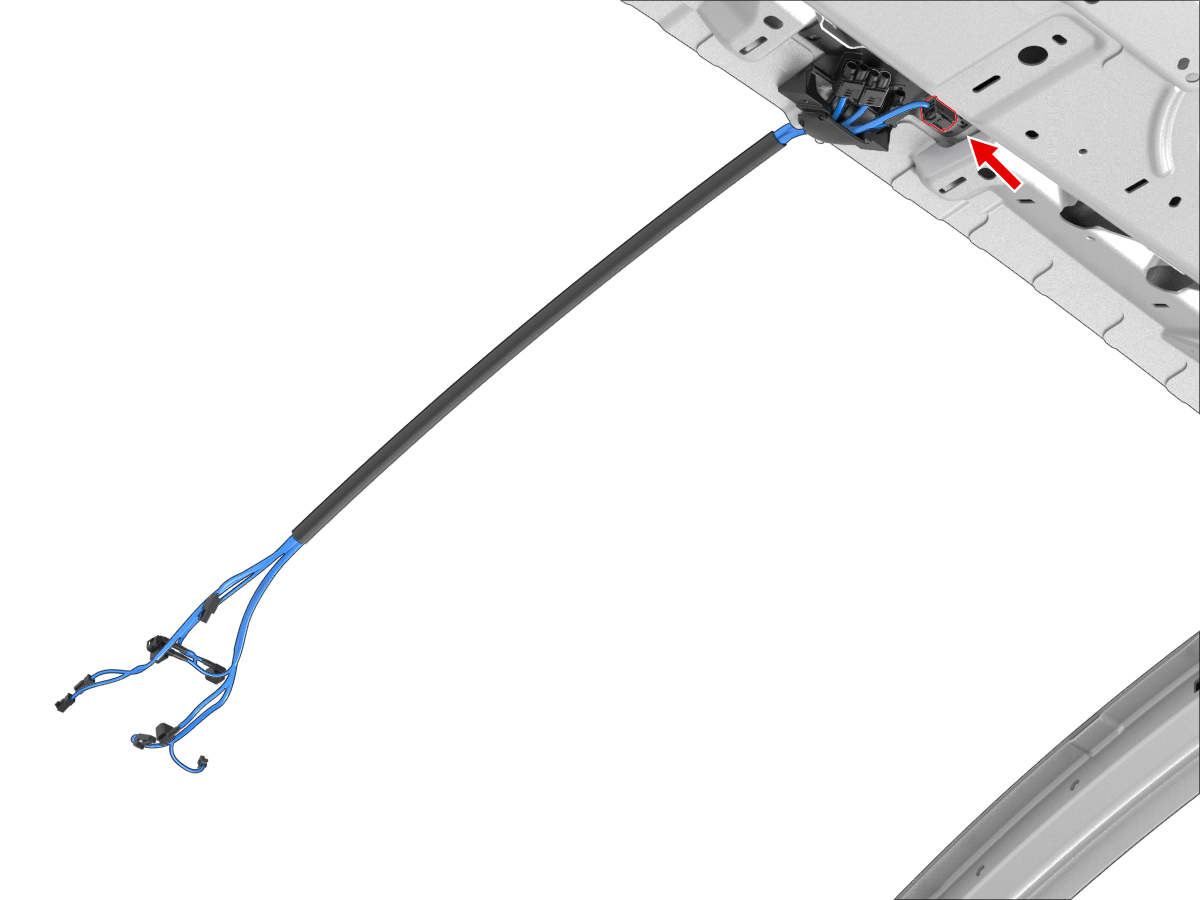

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X309	1
2	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X303	1
3	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X303	3
4	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X303	2
5	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50			X309	2
6	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X282	1
7	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X129	1
8	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X129	2
9	unused
10	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50			X282	2
