X981F

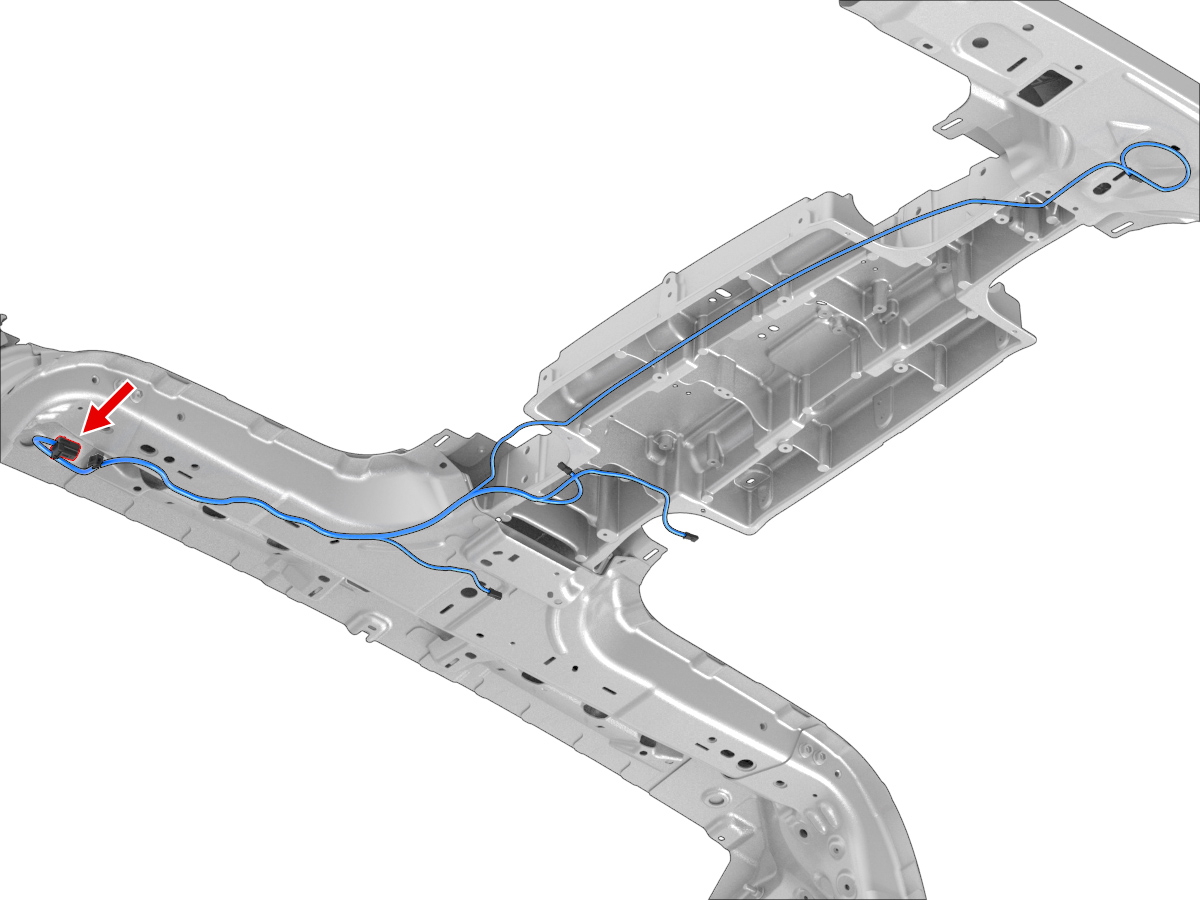

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35072404 | 1.2x0.6F | BU | 0.75 | X594 | 1 | ||
| 2 | DELPHI | 35072404 | 1.2x0.6F | WH | 0.75 | X594 | 2 | ||
| 3 | DELPHI | 35410019 | 1.2x0.6F | RD | 0.35 | X285 | 1 | ||
| 4 | DELPHI | 35410019 | 1.2x0.6F | YE | 0.35 | X286 | 1 | ||
| 5 | DELPHI | 35072404 | 1.2x0.6F | VT | 0.75 | X589 | 2 | ||
| 6 | DELPHI | 35072404 | 1.2x0.6F | YE | 0.75 | X589 | 1 | ||
| 7 | DELPHI | 35410019 | 1.2x0.6F | GN | 0.35 | ||||
| 8 | DELPHI | 35410019 | 1.2x0.6F | BN | 0.35 |
