X982F

Tesla Part Number

1042614-00-A

Connector

SUMITOMO 6098-5604

Color

WH

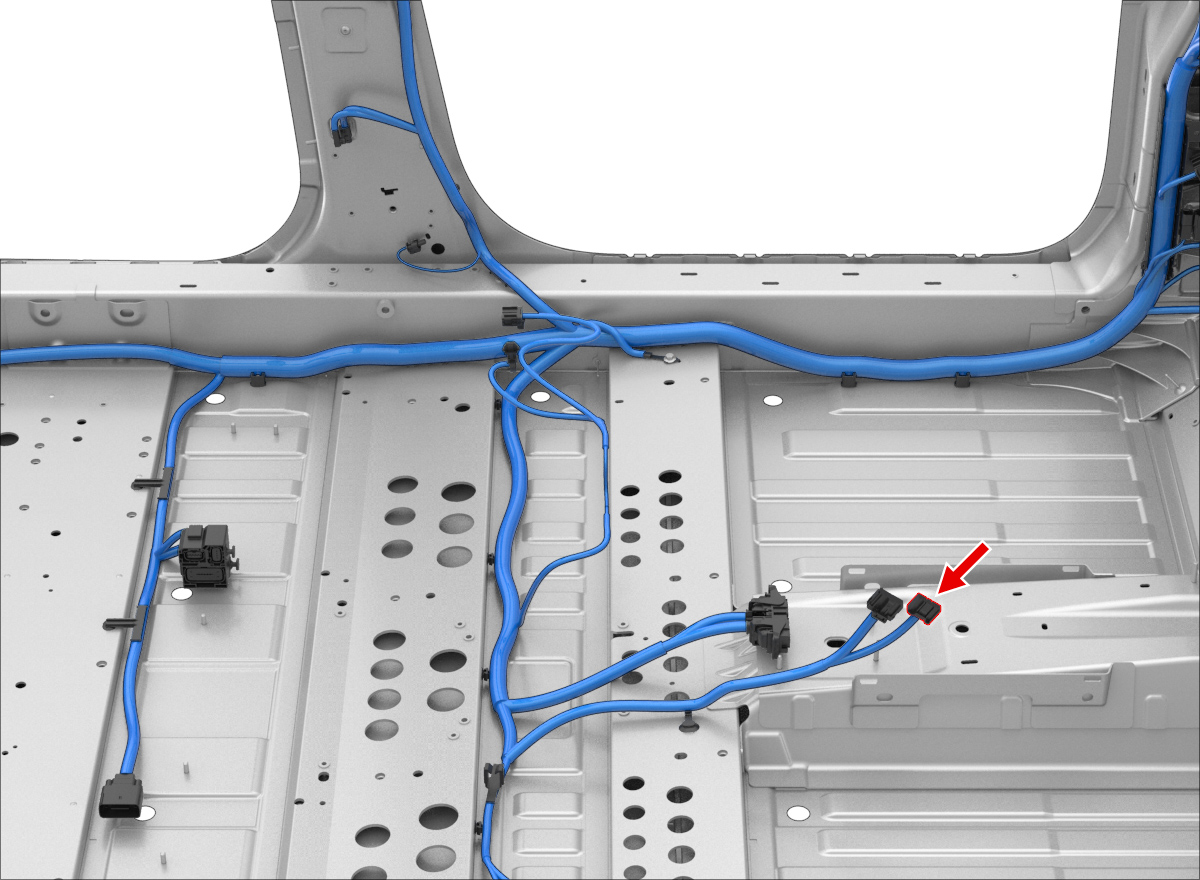

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	BN	2.00			X031	15
2	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X030A	9
3	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X030A	22
4	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X032	34
5	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X988M	3
6	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X988M	4
7	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X039	16
8	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X030A	8
9	unused
10	SUMITOMO	8240-0214	1.5x0.64F	VT	2.00			X031	17
11	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00			G250	1
12	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X031	21
13	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X031	19
14	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.35			X030A	14
15	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X030A	2
16	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X038A	12
17	unused
18	SUMITOMO	8240-0214	1.5x0.64F	RD	2.00			X031	1
