X982M

Tesla Part Number

1042613-00-A

Connector

SUMITOMO 6098-5594

Color

WH

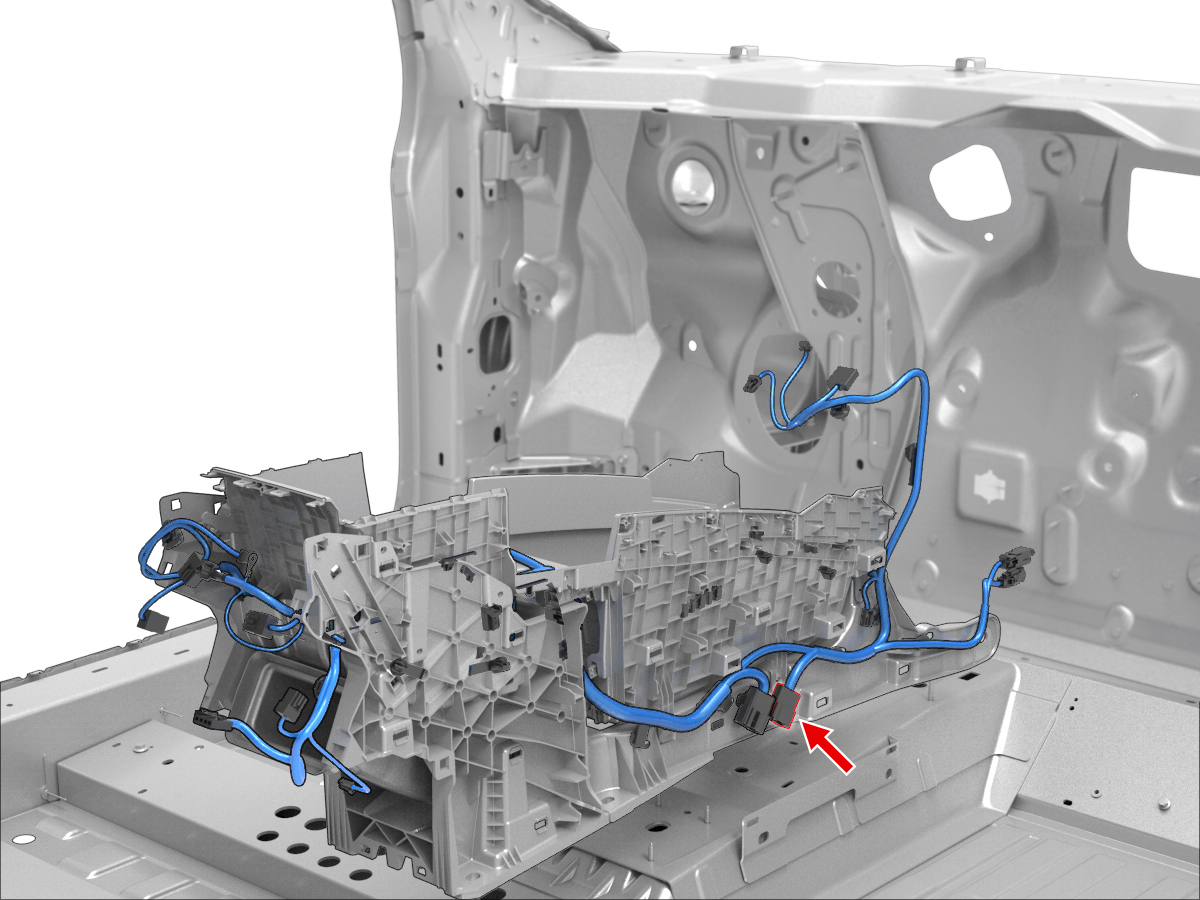

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	BN	2.00			X1130	1
2	SUMITOMO	8230-4925	1.5x0.6M	VT	0.35
3	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35
4	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X496	1
5	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X496	3
6	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X496	4
7	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X1129	2
8	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X1127	2
9	unused
10	SUMITOMO	8230-4923	1.5x0.6M	VT	2.00			X1131	D
11	SUMITOMO	8230-4923	1.5x0.6M	BK	2.00			X1131	A
12	SUMITOMO	8230-4925	1.5x0.6M	RD	0.35			X1138	1
13	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X1133	A
14	SUMITOMO	8100-3623	0.64x0.64M	YE/WH	0.35			X1138	2
15	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X1138	3
16	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X1115	2
17	unused
18	SUMITOMO	8230-4923	1.5x0.6M	RD	2.00			X1130	2
