X983M

Tesla Part Number

1486227-00-A

Connector

DELPHI 33239518

Color

BK

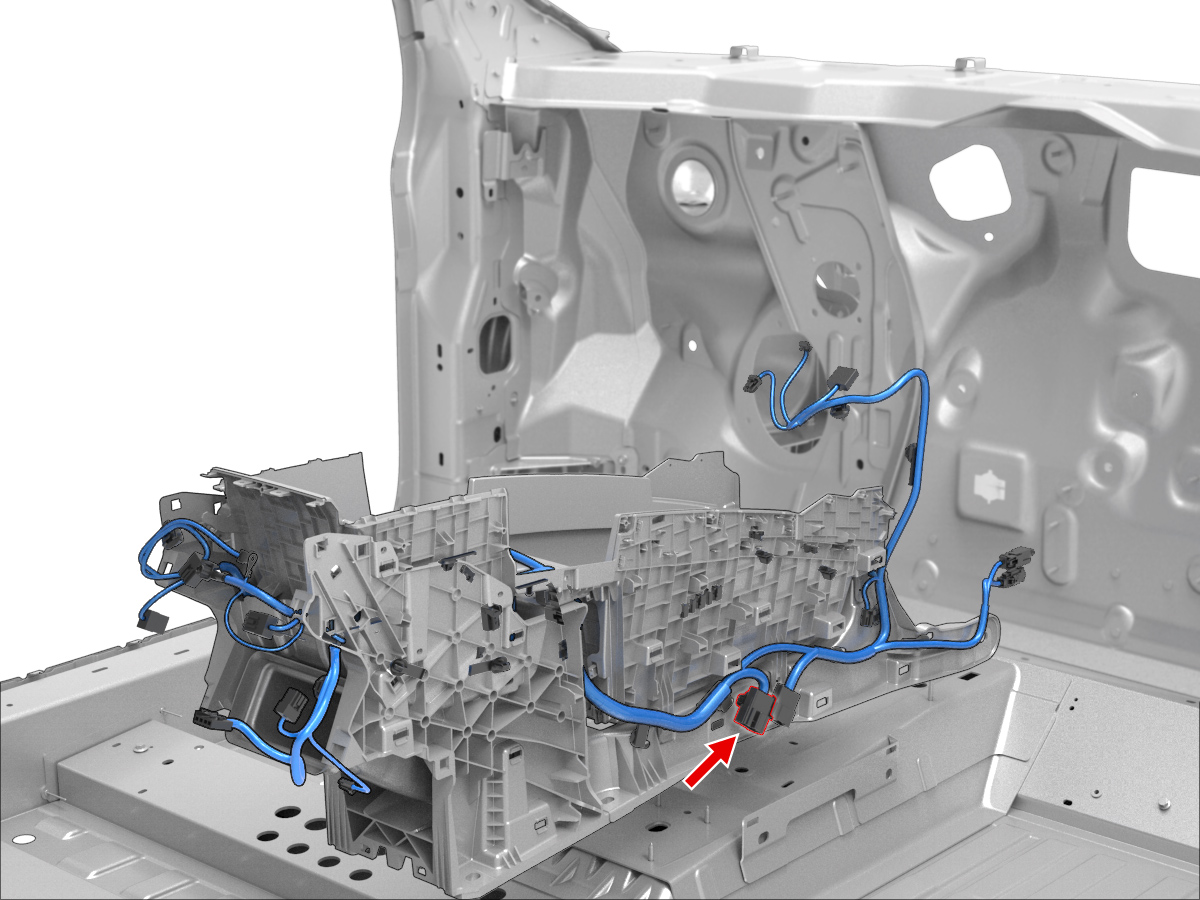

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35412744	1.2x0.6M	VT	0.35			X1140	3
2	DELPHI	35412744	1.2x0.6M	GN	0.35			X1140	7
3	DELPHI	35412744	1.2x0.6M	BU	0.35			X1145	3
4	DELPHI	35412744	1.2x0.6M	YE	0.35			X1145	7
5	DELPHI	35412744	1.2x0.6M	RD	0.35
6	DELPHI	35412744	1.2x0.6M	GY	0.35			X1140	5
7	DELPHI	35412744	1.2x0.6M	VT	0.35			X1141	5
8	DELPHI	35412744	1.2x0.6M	BU	0.35			X1301	A
9	DELPHI	35091062	1.2x0.6M	BK	0.50
10	DELPHI	35412744	1.2x0.6M	WH	0.35			X1128	2
11	DELPHI	35412744	1.2x0.6M	GY	0.35			X1141	3
12	DELPHI	35412744	1.2x0.6M	WH	0.35			X1141	7
13	DELPHI	35412744	1.2x0.6M	VT	0.35			X1146	3
14	DELPHI	35412744	1.2x0.6M	YE	0.35			X1146	7
15	DELPHI	35412744	1.2x0.6M	BN	0.35
16	DELPHI	35412744	1.2x0.6M	BU	0.35			X1145	5
17	DELPHI	35412744	1.2x0.6M	WH	0.35			X1146	5
18	DELPHI	35412744	1.2x0.6M	RD	0.35			X1124	1
19	DELPHI	35412744	1.2x0.6M	GN	0.35			X1116	2
20	DELPHI	35091060	1.2x0.6M	BK	1.50			G023	1
