X985F

Tesla Part Number

1486226-01-A

Connector

DELPHI 33239500

Color

NA

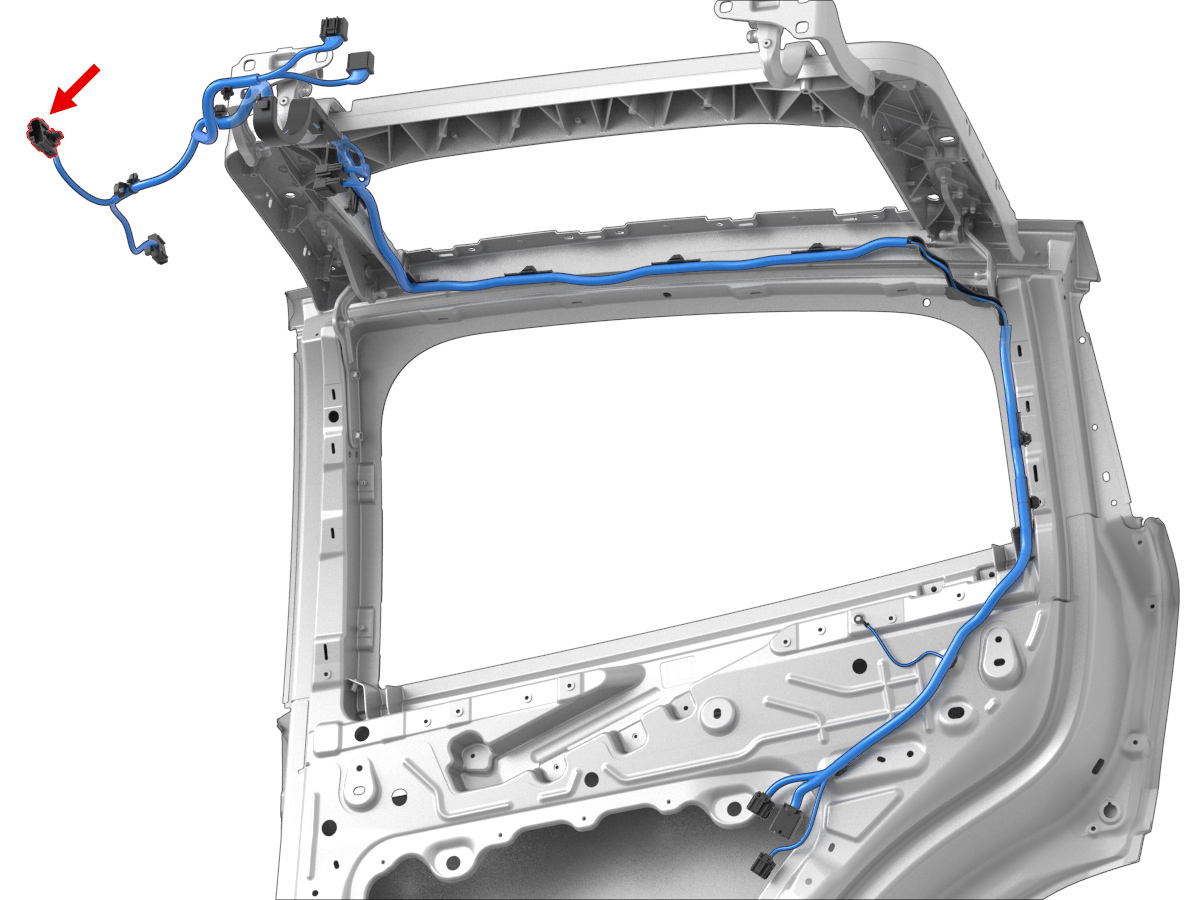

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35072406	1.2x0.6F	BU	1.50			X978F	11
2	unused
3	unused
4	unused
5	DELPHI	35410019	1.2x0.6F	YE	0.35			X974U	21
6	DELPHI	35410019	1.2x0.6F	TN	0.35			X482	2
7	DELPHI	35410019	1.2x0.6F	GY/WH	0.35			X974U	6
8	DELPHI	35410019	1.2x0.6F	GY	0.35			X974U	17
9	DELPHI	35410019	1.2x0.6F	VT/WH	0.35			X974U	9
10	DELPHI	35410019	1.2x0.6F	VT	0.35			X974U	11
11	DELPHI	35072406	1.2x0.6F	WH	1.50			X978F	20
12	unused
13	unused
14	DELPHI	35410019	1.2x0.6F	GN	0.35			X975F	11
15	DELPHI	35410019	1.2x0.6F	BN	0.35			X974U	12
16	DELPHI	35410019	1.2x0.6F	VT	0.35			X975F	12
17	DELPHI	35410019	1.2x0.6F	BK	0.35
18	DELPHI	35410019	1.2x0.6F	BU/WH	0.35			X971F	12
19	DELPHI	35410019	1.2x0.6F	BU	0.35			X971F	13
20	DELPHI	35410019	1.2x0.6F	GY	0.35
