X985M

Tesla Part Number

1486227-01-A

Connector

DELPHI 33239519

Color

NA

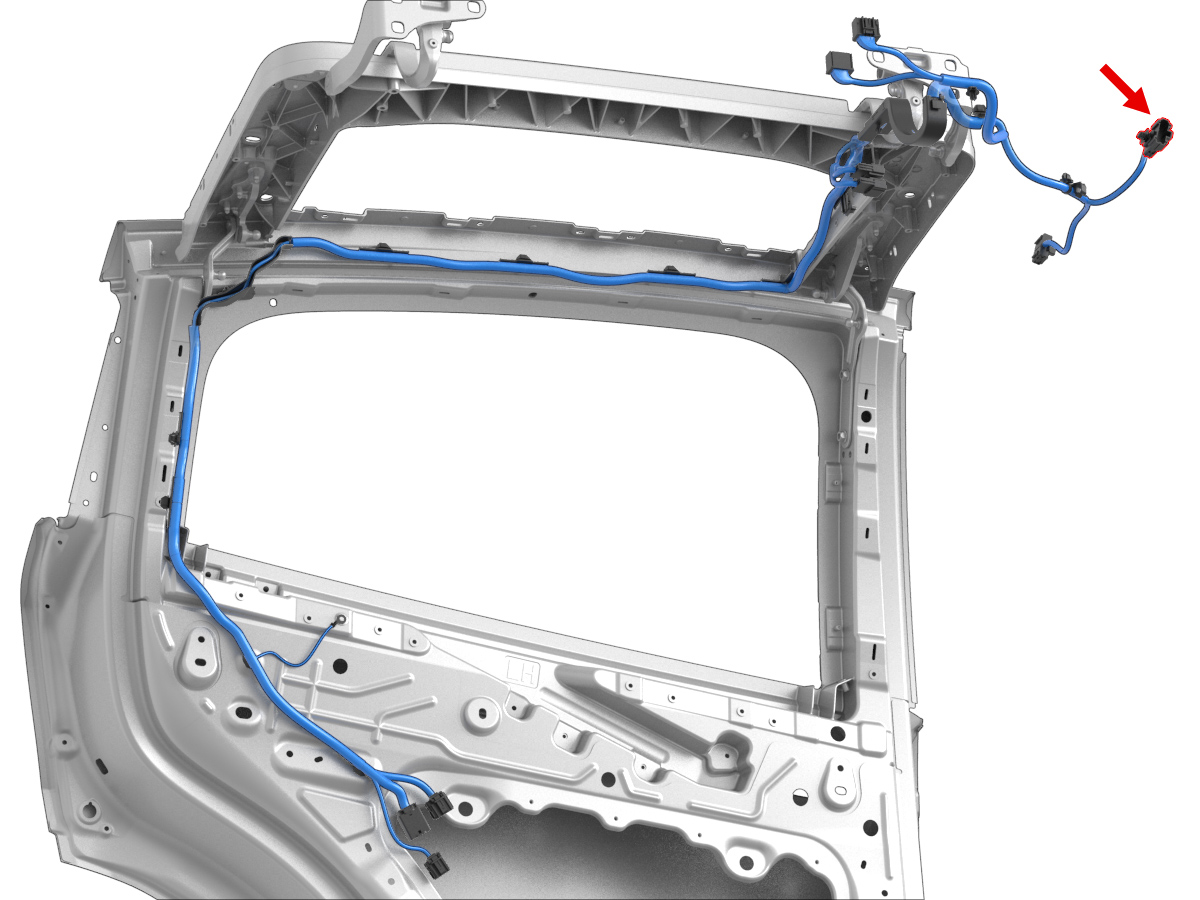

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35091060	1.2x0.6M	BU	1.50			X973F	1
2	unused
3	unused
4	unused
5	DELPHI	35412744	1.2x0.6M	YE	0.35			X972U	20
6	DELPHI	35412744	1.2x0.6M	TN	0.35			X973F	14
7	DELPHI	35412744	1.2x0.6M	GY/WH	0.35			X972U	6
8	DELPHI	35412744	1.2x0.6M	GY	0.35			X972U	17
9	DELPHI	35412744	1.2x0.6M	VT/WH	0.35			X972U	9
10	DELPHI	35412744	1.2x0.6M	VT	0.35			X972U	11
11	DELPHI	35091060	1.2x0.6M	WH	1.50			X973F	9
12	unused
13	unused
14	DELPHI	35412744	1.2x0.6M	GN	0.35			X973F	13
15	DELPHI	35412744	1.2x0.6M	BN	0.35			X972U	13
16	DELPHI	35412744	1.2x0.6M	VT	0.35			X973F	12
17	DELPHI	35412744	1.2x0.6M	BK	0.35			X973F	2
18	DELPHI	35412744	1.2x0.6M	BU/WH	0.35			X973F	10
19	DELPHI	35412744	1.2x0.6M	BU	0.35			X973F	11
20	DELPHI	35412744	1.2x0.6M	GY	0.35			X973F	3
