X986F

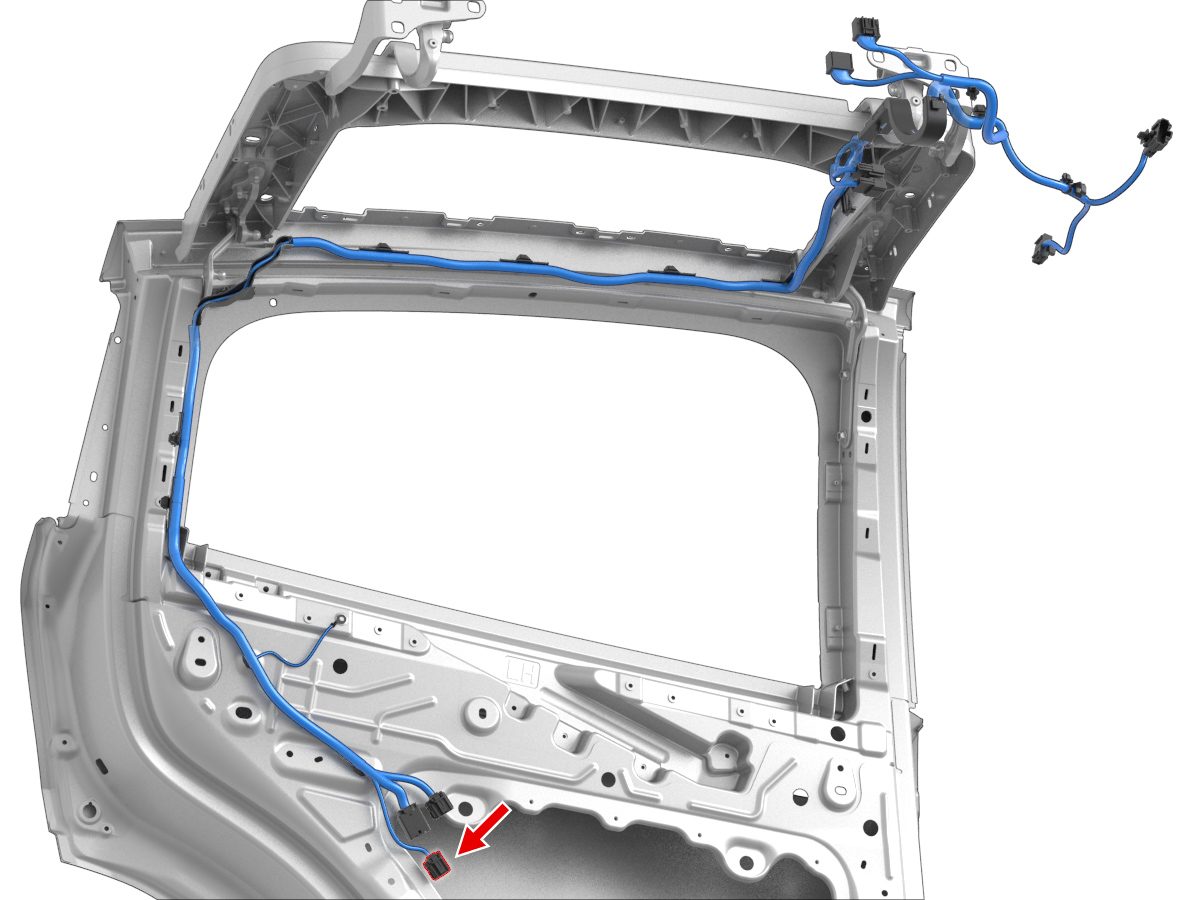

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35072406 | 1.2x0.6F | RD | 1.50 | X970F | 1 | ||
| 2 | unused | ||||||||
| 3 | DELPHI | 35410019 | 1.2x0.6F | GY | 0.35 | X970F | 14 | ||
| 4 | DELPHI | 35410019 | 1.2x0.6F | RD | 0.35 | X970F | 13 | ||
| 5 | DELPHI | 35072404 | 1.2x0.6F | BN | 0.75 | X970F | 6 | ||
| 6 | DELPHI | 35410019 | 1.2x0.6F | YE | 0.35 | X970F | 12 | ||
| 7 | DELPHI | 35072406 | 1.2x0.6F | TN | 1.50 | X970F | 11 | ||
| 8 | unused | ||||||||
| 9 | DELPHI | 35410019 | 1.2x0.6F | GN | 0.35 | X970F | 16 | ||
| 10 | DELPHI | 35410019 | 1.2x0.6F | BU | 0.35 | X970F | 15 | ||
| 11 | unused | ||||||||
| 12 | unused | ||||||||
